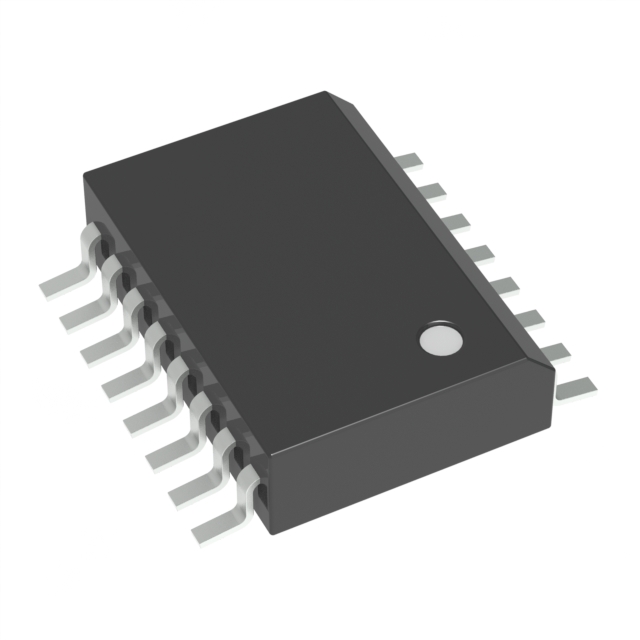

onsemi SG3525ADWR2G
Image shown is a representation only
Manufacturer
Manufacturer No
SG3525ADWR2G
Quantity
7214
Availability
In Stock
Package
16-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC REG CTRLR PUSH-PULL 16SOIC
Detailed Description
Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
DataSheet
Function
Step-Up/Step-Down
Topology
Push-Pull
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Clock Sync
Yes
Output Type
Transistor Driver
Part Status
Active
Manufacturer
onsemi
Mounting Type
Surface Mount
Output Phases
1
Package / Case
16-SOIC (0.295", 7.50mm Width)
Control Features
Enable, Frequency Control, Soft Start
Duty Cycle (Max)
49%
Number of Outputs
2
Base Product Number
SG3525
Output Configuration
Positive
Frequency - Switching
100Hz ~ 400kHz
Operating Temperature
0°C ~ 70°C (TA)
Synchronous Rectifier
Yes
Supplier Device Package
16-SOIC
Voltage - Supply (Vcc/Vdd)
8V ~ 35V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Push-Pull |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Clock Sync | Yes |
| Output Type | Transistor Driver |
| Part Status | Active |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Control Features | Enable, Frequency Control, Soft Start |
| Duty Cycle (Max) | 49% |
| Number of Outputs | 2 |
| Base Product Number | SG3525 |
| Output Configuration | Positive |
| Frequency - Switching | 100Hz ~ 400kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
