Step1: Product
onsemi QSB363CZR

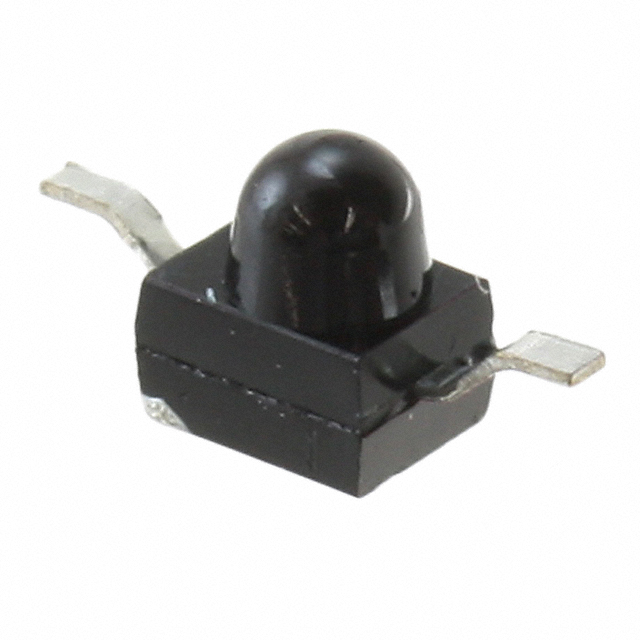

Image shown is a representation only
Manufacturer
Manufacturer No
QSB363CZR
Package
2-SMD, Z-Bend
Packaging
Tape & Reel (TR)
Description
SENSOR PHOTO 940NM TOP VIEW 2SMD
Detailed Description
Phototransistors 940nm Top View 2-SMD, Z-Bend
DataSheet
Packaging
Tape & Reel (TR)
Wavelength
940nm
Orientation
Top View
Part Status
Obsolete
Power - Max
75 mW
Manufacturer
onsemi
Mounting Type
Surface Mount
Viewing Angle
24°
Package / Case
2-SMD, Z-Bend
Base Product Number
QSB363
Operating Temperature
-25°C ~ 85°C
Current - Dark (Id) (Max)
100 nA
Voltage - Collector Emitter Breakdown (Max)
30 V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR) |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Obsolete |
| Power - Max | 75 mW |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Viewing Angle | 24° |
| Package / Case | 2-SMD, Z-Bend |
| Base Product Number | QSB363 |
| Operating Temperature | -25°C ~ 85°C |
| Current - Dark (Id) (Max) | 100 nA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
