Step1: Product
onsemi NUF3102MUTAG

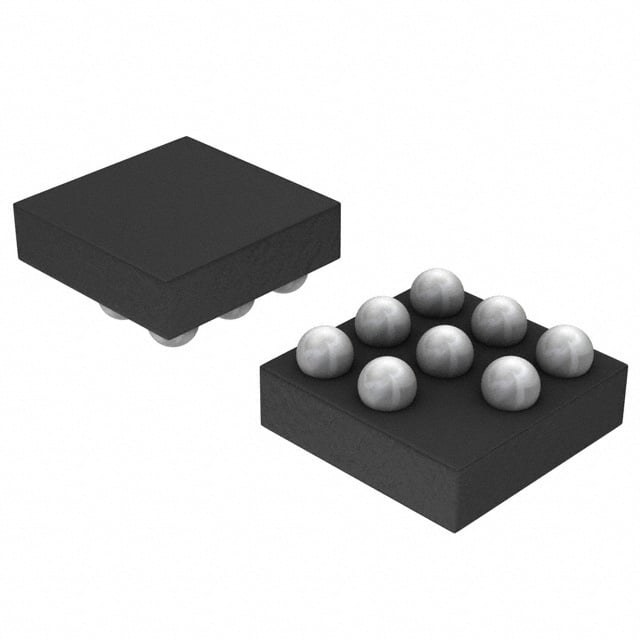

Image shown is a representation only
Manufacturer
Manufacturer No
NUF3102MUTAG
Date Code
1721
Quantity
4,088
Availability
In Stock
Package
8-UFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FILTER RC(PI) 150MHZ ESD SMD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47Ohm, 100Ohm, C = 13pF 8-UFDFN Exposed Pad
Datasheet
Type
Low Pass
Height
0.022" (0.55mm)
Values
R = 47Ohm, 100Ohm, C = 13pF
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
RC (Pi)
Applications
Data Lines for Mobile Devices
Filter Order
2nd
Manufacturer
onsemi
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
8-UFDFN Exposed Pad
Size / Dimension
0.071" L x 0.047" W (1.80mm x 1.20mm)
Attenuation Value
-25dB @ 800MHz ~ 5GHz
Number of Channels
3
Base Product Number
NUF3102
Operating Temperature
-40°C ~ 85°C
Center / Cutoff Frequency
150MHz (Cutoff)
Resistance - Channel (Ohms)
47, 100
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.022" (0.55mm) |
| Values | R = 47Ohm, 100Ohm, C = 13pF |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | RC (Pi) |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 2nd |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.071" L x 0.047" W (1.80mm x 1.20mm) |
| Attenuation Value | -25dB @ 800MHz ~ 5GHz |
| Number of Channels | 3 |
| Base Product Number | NUF3102 |
| Operating Temperature | -40°C ~ 85°C |
| Center / Cutoff Frequency | 150MHz (Cutoff) |
| Resistance - Channel (Ohms) | 47, 100 |
