onsemi NCV760040MWTXG

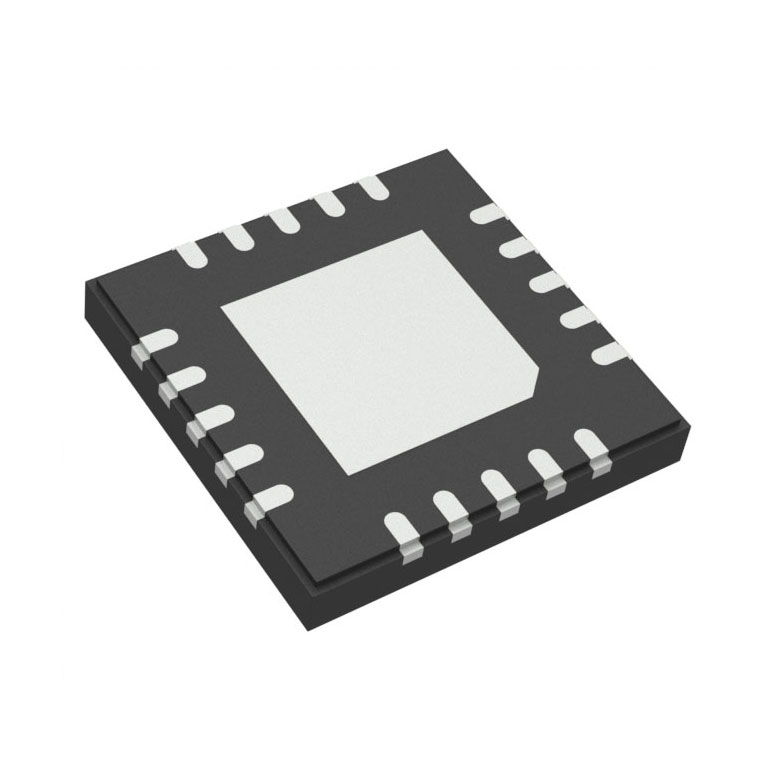

Image shown is a representation only
Manufacturer
Manufacturer No
NCV760040MWTXG
Package
20-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
AUTOMOTIVE DRIVER
Detailed Description
Power Switch/Driver 1:2 N-Channel 1.2A 20-QFNW (3.5x3.5)
DataSheet
Mfr
onsemi
Grade
Automotive
Features
Status Flag
Interface
I2C
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Active
Switch Type
General Purpose
Rds On (Typ)
500mOhm
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
20-VFQFN Exposed Pad
Voltage - Load
4.5V ~ 28V
Fault Protection
Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
Number of Outputs
4
Output Configuration
High Side
Ratio - Input:Output
1:2
Operating Temperature
-40°C ~ 125°C
Current - Output (Max)
1.2A
Supplier Device Package
20-QFNW (3.5x3.5)
Voltage - Supply (Vcc/Vdd)
4.5V ~ 5.25V
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Grade | Automotive |
| Features | Status Flag |
| Interface | I2C |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Active |
| Switch Type | General Purpose |
| Rds On (Typ) | 500mOhm |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Load | 4.5V ~ 28V |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO |
| Number of Outputs | 4 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:2 |
| Operating Temperature | -40°C ~ 125°C |
| Current - Output (Max) | 1.2A |
| Supplier Device Package | 20-QFNW (3.5x3.5) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.25V |
