onsemi NCV70514MN005AR2G

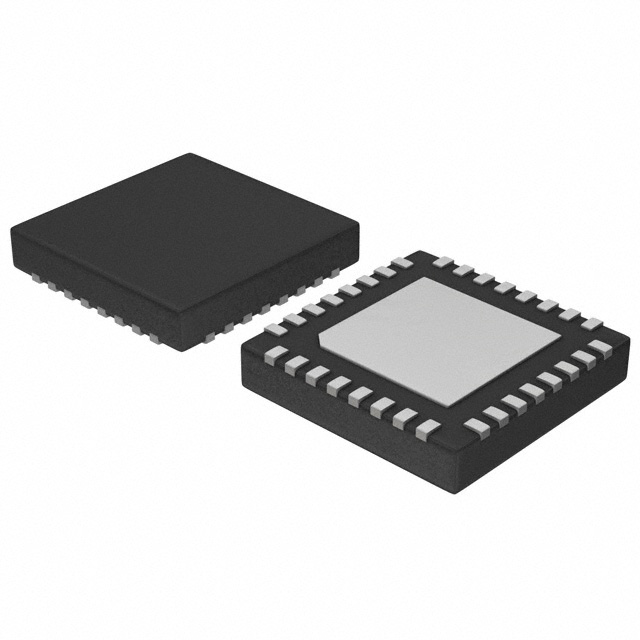

Image shown is a representation only
Manufacturer
Manufacturer No
NCV70514MN005AR2G
Package
32-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC STEPPER MOTOR DRIVER 32QFN
Detailed Description
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 32-QFN (5x5)
DataSheet
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI, Step/Direction
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Power MOSFET
Part Status
Obsolete
Applications
General Purpose
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
32-VFQFN Exposed Pad
Voltage - Load
0V ~ 5.5V
Step Resolution
1 ~ 1/32
Voltage - Supply
6V ~ 29V
Base Product Number
NCV70514
Motor Type - Stepper
Bipolar
Output Configuration
Half Bridge (4)
Operating Temperature
-45°C ~ 145°C (TJ)
Supplier Device Package
32-QFN (5x5)
| Attribute | Value |
|---|---|
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, Step/Direction |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Power MOSFET |
| Part Status | Obsolete |
| Applications | General Purpose |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Voltage - Load | 0V ~ 5.5V |
| Step Resolution | 1 ~ 1/32 |
| Voltage - Supply | 6V ~ 29V |
| Base Product Number | NCV70514 |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (4) |
| Operating Temperature | -45°C ~ 145°C (TJ) |
| Supplier Device Package | 32-QFN (5x5) |
