onsemi NCP45770IMN24TWG

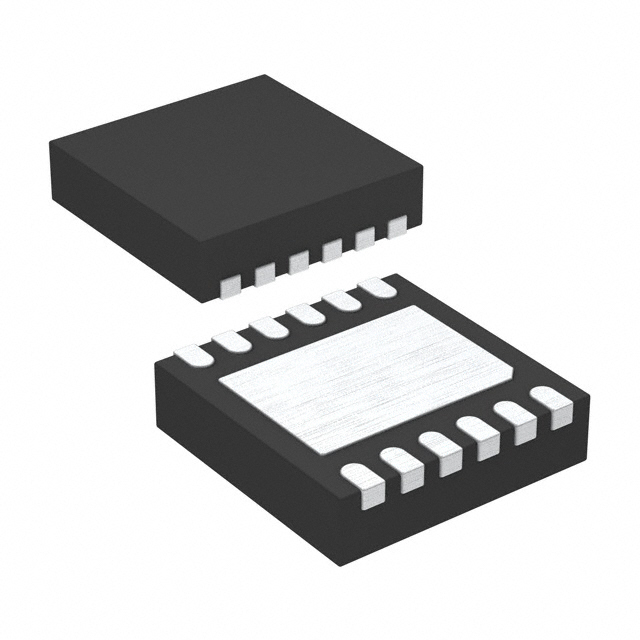

Image shown is a representation only
Manufacturer
Manufacturer No
NCP45770IMN24TWG
Quantity
51
Availability
In Stock
Package
12-VFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
770 MCM
Detailed Description
Power Switch/Driver 1:1 N-Channel 20A 12-DFN (3x3)
DataSheet
Mfr
onsemi
Series
ecoSWITCH™
Features
Slew Rate Controlled
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Active
Switch Type
General Purpose
Rds On (Typ)
3.6mOhm
Mounting Type
Surface Mount
Package / Case
12-VFDFN Exposed Pad
Voltage - Load
3V ~ 24V
Fault Protection
Current Limiting (Adjustable), Over Temperature, UVLO
Number of Outputs
1
Base Product Number
NCP45770
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
20A
Supplier Device Package
12-DFN (3x3)
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Series | ecoSWITCH™ |
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Active |
| Switch Type | General Purpose |
| Rds On (Typ) | 3.6mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Voltage - Load | 3V ~ 24V |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Number of Outputs | 1 |
| Base Product Number | NCP45770 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 20A |
| Supplier Device Package | 12-DFN (3x3) |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
