Step1: Product
onsemi NC7WZ14L6X

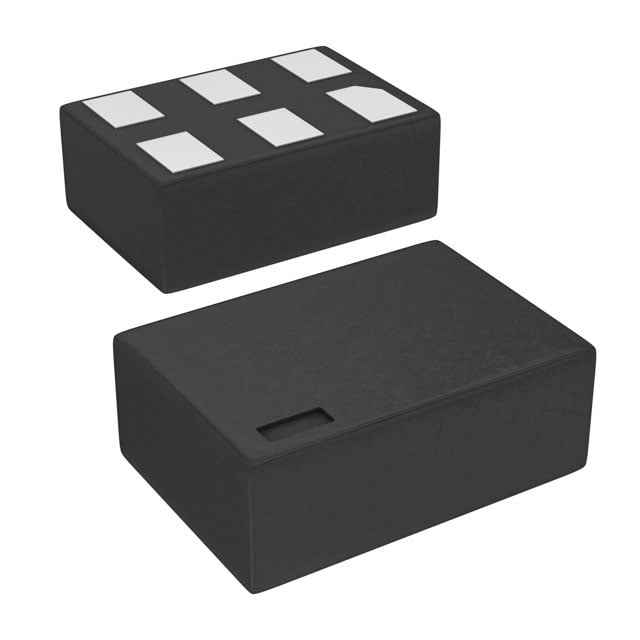

Image shown is a representation only
Manufacturer
Manufacturer No
NC7WZ14L6X
Quantity
4,275
Availability
In Stock
Package
6-UFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC INVERTER 2CH 2-INP 6MICROPAK
Detailed Description
Inverter IC 2 Channel Schmitt Trigger 6-MicroPak
Datasheet
Mfr
onsemi
Series
7WZ
Features
Schmitt Trigger
Packaging
Tape & Reel (TR); Cut Tape (CT)
Logic Type
Inverter
Mounting Type
Surface Mount
Package / Case
6-UFDFN
Number of Inputs
2
Voltage - Supply
1.65V ~ 5.5V
Number of Circuits
2
Base Product Number
7WZ14
Operating Temperature
-40°C ~ 85°C
Input Logic Level - Low
0.2V ~ 1.2V
Supplier Device Package
6-MicroPak
Input Logic Level - High
1.4V ~ 3.6V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
32mA, 32mA
Max Propagation Delay @ V, Max CL
4.9ns @ 5V, 50pF
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Series | 7WZ |
| Features | Schmitt Trigger |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Logic Type | Inverter |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 5.5V |
| Number of Circuits | 2 |
| Base Product Number | 7WZ14 |
| Operating Temperature | -40°C ~ 85°C |
| Input Logic Level - Low | 0.2V ~ 1.2V |
| Supplier Device Package | 6-MicroPak |
| Input Logic Level - High | 1.4V ~ 3.6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
