Step1: Product

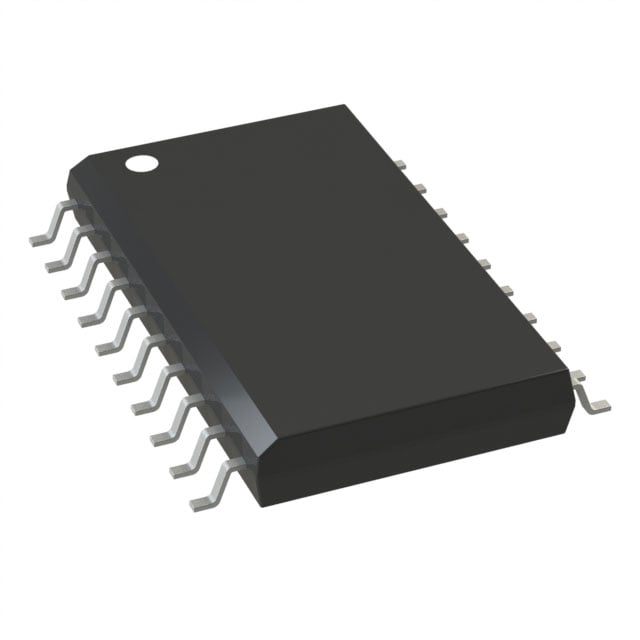

onsemi MC74HCT273ADWG
Image shown is a representation only
Manufacturer
Manufacturer No
MC74HCT273ADWG
Quantity
1,102
Availability
In Stock
Package
20-SOIC (0.295", 7.50mm Width)
Packaging
Tube
Description
IC FF D-TYPE 1-ELE 8-BIT 20-SOIC
Detailed Description
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
Datasheet
Type
D-Type
Series
74HCT
Function
Reset
Packaging
Tube
Output Type
Non-Inverted
Manufacturer
onsemi
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.295", 7.50mm Width)
Clock Frequency
30 MHz
Voltage - Supply
4.5V ~ 5.5V
Number of Elements
1
Base Product Number
74HCT273
Operating Temperature
-55°C ~ 125°C (TA)
Supplier Device Package
20-SOIC
Current - Quiescent (Iq)
4 µA
Current - Output High, Low
4mA, 4mA
Number of Bits per Element
8
Max Propagation Delay @ V, Max CL
25ns @ 5V, 50pF
| Attribute | Value |
|---|---|
| Type | D-Type |
| Series | 74HCT |
| Function | Reset |
| Packaging | Tube |
| Output Type | Non-Inverted |
| Manufacturer | onsemi |
| Trigger Type | Positive Edge |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Clock Frequency | 30 MHz |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Elements | 1 |
| Base Product Number | 74HCT273 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Supplier Device Package | 20-SOIC |
| Current - Quiescent (Iq) | 4 µA |
| Current - Output High, Low | 4mA, 4mA |
| Number of Bits per Element | 8 |
| Max Propagation Delay @ V, Max CL | 25ns @ 5V, 50pF |
