onsemi H11A2M

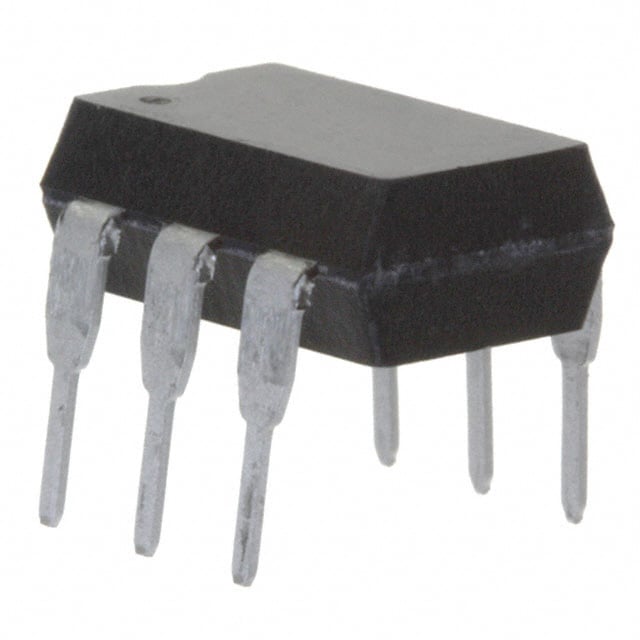

Image shown is a representation only
Manufacturer
Manufacturer No
H11A2M
Package
6-SMD, Gull Wing
Packaging
Bulk
Description
OPTOISO 7.5KV TRANS W/BASE 6-SMD
Detailed Description
Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-SMD
DataSheet
Packaging
Bulk
Input Type
DC
Output Type
Transistor with Base
Part Status
Obsolete
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
6-SMD, Gull Wing
Number of Channels
1
Base Product Number
H11A
Voltage - Isolation
7500Vpk
Vce Saturation (Max)
400mV
Operating Temperature
-40°C ~ 100°C
Voltage - Output (Max)
30V
Supplier Device Package
6-SMD
Current Transfer Ratio (Min)
20% @ 10mA
Voltage - Forward (Vf) (Typ)
1.18V
Turn On / Turn Off Time (Typ)
2µs, 2µs
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Input Type | DC |
| Output Type | Transistor with Base |
| Part Status | Obsolete |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Number of Channels | 1 |
| Base Product Number | H11A |
| Voltage - Isolation | 7500Vpk |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Output (Max) | 30V |
| Supplier Device Package | 6-SMD |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Turn On / Turn Off Time (Typ) | 2µs, 2µs |
| Current - DC Forward (If) (Max) | 60 mA |
