Step1: Product
onsemi FSA5157L6X-S

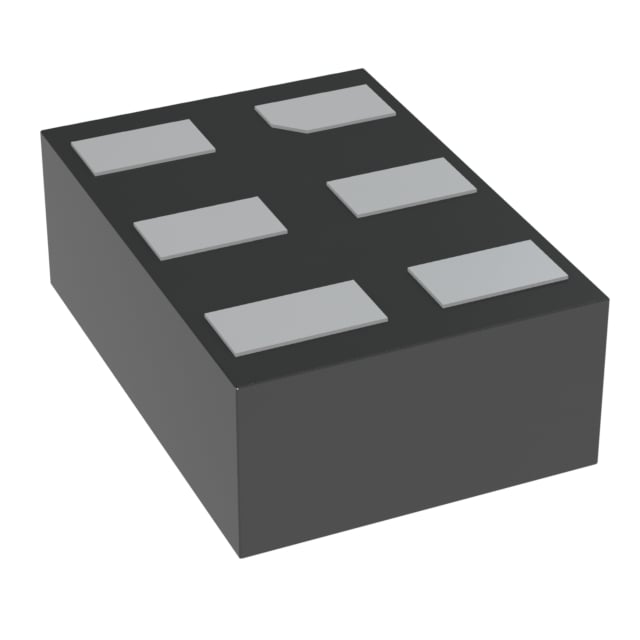

Image shown is a representation only
Manufacturer
Manufacturer No
FSA5157L6X-S
Package
6-UFDFN
Packaging
Bulk
Description
0.4 OHM LOW VOLTAGE SPDT ANALOG
Detailed Description
1 Circuit IC Switch 2:1 360mOhm (Typ) 6-SIP (1.45x1)
DataSheet
Crosstalk
-75dB @ 100kHz
Packaging
Bulk
Part Status
Discontinued at DigiKey
Manufacturer
onsemi
Mounting Type
Surface Mount
-3db Bandwidth
80MHz
Package / Case
6-UFDFN
Switch Circuit
SPDT - Open/Closed
Charge Injection
6pC
Number of Circuits
1
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
6-SIP (1.45x1)
On-State Resistance (Max)
360mOhm (Typ)
Switch Time (Ton, Toff) (Max)
55ns, 30ns
Voltage - Supply, Single (V+)
1.65V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
40mOhm
Channel Capacitance (CS(off), CD(off))
1.5pF
| Attribute | Value |
|---|---|
| Crosstalk | -75dB @ 100kHz |
| Packaging | Bulk |
| Part Status | Discontinued at DigiKey |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 80MHz |
| Package / Case | 6-UFDFN |
| Switch Circuit | SPDT - Open/Closed |
| Charge Injection | 6pC |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 6-SIP (1.45x1) |
| On-State Resistance (Max) | 360mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF |
