Step1: Product
onsemi FSA2258L10X

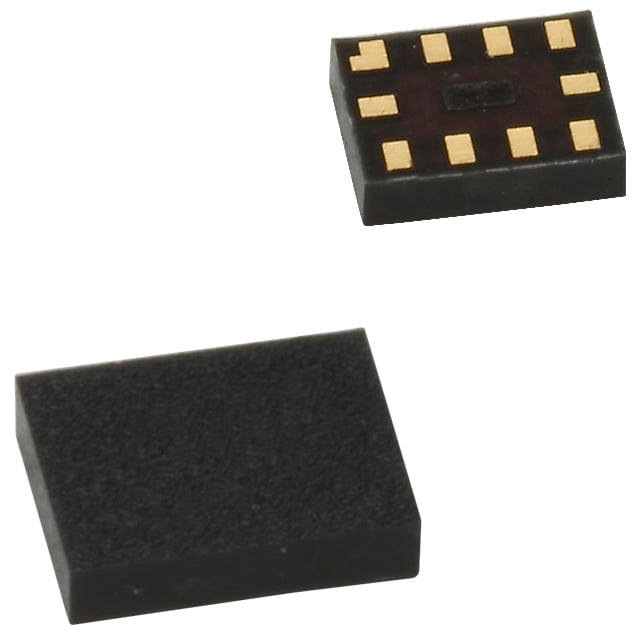

Image shown is a representation only
Manufacturer
Manufacturer No
FSA2258L10X
Quantity
8
Availability
In Stock
Package
10-UFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC SW SPDTX2 500MOHM 10MICROPAK
Detailed Description
2 Circuit IC Switch 2:1 500mOhm (Typ) 10-MicroPak™
DataSheet
Crosstalk
-100dB @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Obsolete
Manufacturer
onsemi
Mounting Type
Surface Mount
-3db Bandwidth
50MHz
Package / Case
10-UFQFN Exposed Pad
Switch Circuit
SPDT
Charge Injection
25pC
Number of Circuits
2
Base Product Number
FSA2258
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
10-MicroPak™
On-State Resistance (Max)
500mOhm (Typ)
Switch Time (Ton, Toff) (Max)
55ns, 30ns
Voltage - Supply, Single (V+)
1.65V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
80mOhm
Channel Capacitance (CS(off), CD(off))
3.3pF
| Attribute | Value |
|---|---|
| Crosstalk | -100dB @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Obsolete |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 50MHz |
| Package / Case | 10-UFQFN Exposed Pad |
| Switch Circuit | SPDT |
| Charge Injection | 25pC |
| Number of Circuits | 2 |
| Base Product Number | FSA2258 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 10-MicroPak™ |
| On-State Resistance (Max) | 500mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 80mOhm |
| Channel Capacitance (CS(off), CD(off)) | 3.3pF |
