onsemi FGH40N60SMD

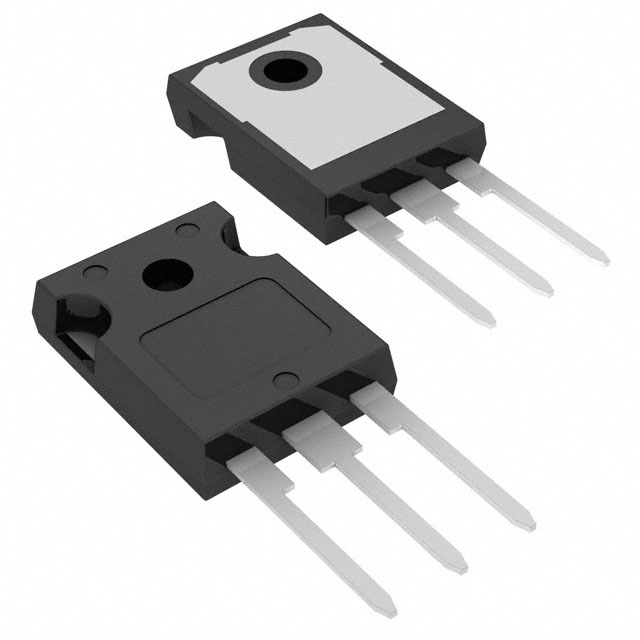

Image shown is a representation only
Manufacturer
Manufacturer No
FGH40N60SMD
Quantity
1,902
Availability
In Stock
Package
TO-247-3
Packaging
Tube
Description
IGBT FIELD STOP 600V 80A TO247
Detailed Description
IGBT Field Stop 600 V 80 A 349 W Through Hole TO-247-3
Datasheet
IGBT Type
Field Stop
Packaging
Tube
Input Type
Standard
Gate Charge
119 nC
Power - Max
349 W
Manufacturer
onsemi
Mounting Type
Through Hole
Package / Case
TO-247-3
Test Condition
400V, 40A, 6Ohm, 15V
Switching Energy
870µJ (on), 260µJ (off)
Base Product Number
FGH40N60
Td (on/off) @ 25°C
12ns/92ns
Operating Temperature
-55°C ~ 175°C (TJ)
Supplier Device Package
TO-247-3
Vce(on) (Max) @ Vge, Ic
2.5V @ 15V, 40A
Reverse Recovery Time (trr)
36 ns
Current - Collector (Ic) (Max)
80 A
Current - Collector Pulsed (Icm)
120 A
Voltage - Collector Emitter Breakdown (Max)
600 V
| Attribute | Value |
|---|---|
| IGBT Type | Field Stop |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 119 nC |
| Power - Max | 349 W |
| Manufacturer | onsemi |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 400V, 40A, 6Ohm, 15V |
| Switching Energy | 870µJ (on), 260µJ (off) |
| Base Product Number | FGH40N60 |
| Td (on/off) @ 25°C | 12ns/92ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247-3 |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 40A |
| Reverse Recovery Time (trr) | 36 ns |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
