Step1: Product
onsemi CS8161YTHA5

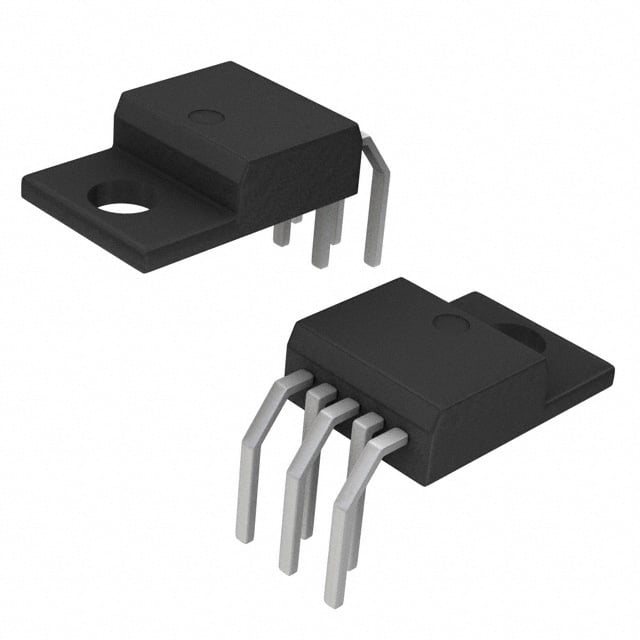

Image shown is a representation only
Manufacturer
Manufacturer No
CS8161YTHA5
Package
TO-220-5 Formed Leads
Packaging
Tube
Description
IC REG LINEAR 12/5V TO220-5
Detailed Description
Linear Voltage Regulator IC Positive Fixed 2 Output 400mA, 200mA TO-220-5 Horizontal
Datasheet
Mfr
onsemi
PSRR
42dB (120Hz)
Packaging
Tube
Output Type
Fixed
Mounting Type
Through Hole
Package / Case
TO-220-5 Formed Leads
Control Features
Enable
Current - Output
400mA, 200mA
Base Product Number
CS8161
Protection Features
Over Temperature, Over Voltage, Short Circuit
Number of Regulators
2
Output Configuration
Positive
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
26V
Voltage Dropout (Max)
0.6V @ 400mA, 0.6V @ 200mA
Current - Supply (Max)
75 mA
Supplier Device Package
TO-220-5 Horizontal
Current - Quiescent (Iq)
10 mA
Voltage - Output (Min/Fixed)
12V, 5V
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| PSRR | 42dB (120Hz) |
| Packaging | Tube |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Control Features | Enable |
| Current - Output | 400mA, 200mA |
| Base Product Number | CS8161 |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input (Max) | 26V |
| Voltage Dropout (Max) | 0.6V @ 400mA, 0.6V @ 200mA |
| Current - Supply (Max) | 75 mA |
| Supplier Device Package | TO-220-5 Horizontal |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Output (Min/Fixed) | 12V, 5V |
