Step1: Product
onsemi AXM0F243-1-TX40

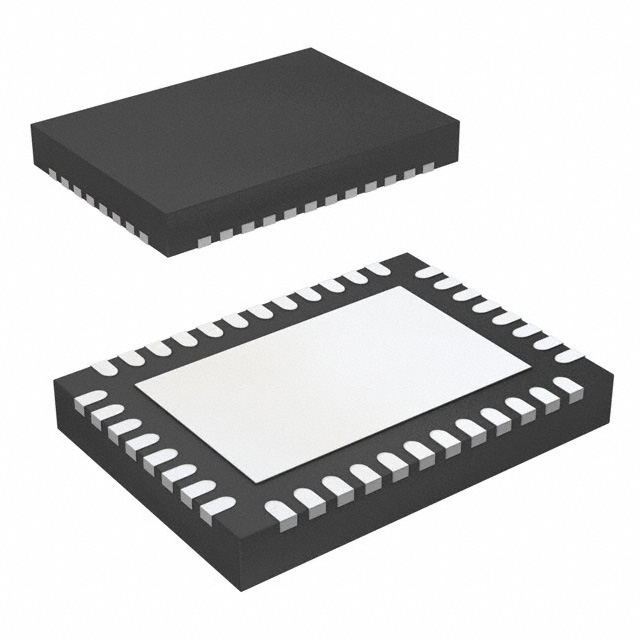

Image shown is a representation only
Manufacturer
Manufacturer No
AXM0F243-1-TX40
Package
40-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC RF TXRX+MCU ISM<1GHZ 40QFN
Detailed Description
IC RF TxRx + MCU General ISM < 1GHz Sigfox, Wireless M-Bus, Z-Wave® 27MHz ~ 1.05GHz 40-VFQFN Exposed Pad
Datasheet
Mfr
onsemi
GPIO
20
Type
TxRx + MCU
Protocol
Sigfox, Wireless M-Bus, Z-Wave®
Frequency
27MHz ~ 1.05GHz
Packaging
Tape & Reel (TR)
Modulation
4FSK, ASK, FSK, GFSK, GMSK, MSK, PSK
Memory Size
64kB Flash, 8kB SRAM
Sensitivity
-137dBm
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Power - Output
16dBm
Data Rate (Max)
1Mbps
Voltage - Supply
1.8V ~ 3.6V
Serial Interfaces
I2C, SPI, UART
RF Family/Standard
General ISM < 1GHz
Base Product Number
AXM0F243
Current - Receiving
6.5mA ~ 11mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
7.6 mA ~ 55 mA
Supplier Device Package
40-QFN (7x5)
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| GPIO | 20 |
| Type | TxRx + MCU |
| Protocol | Sigfox, Wireless M-Bus, Z-Wave® |
| Frequency | 27MHz ~ 1.05GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 4FSK, ASK, FSK, GFSK, GMSK, MSK, PSK |
| Memory Size | 64kB Flash, 8kB SRAM |
| Sensitivity | -137dBm |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Power - Output | 16dBm |
| Data Rate (Max) | 1Mbps |
| Voltage - Supply | 1.8V ~ 3.6V |
| Serial Interfaces | I2C, SPI, UART |
| RF Family/Standard | General ISM < 1GHz |
| Base Product Number | AXM0F243 |
| Current - Receiving | 6.5mA ~ 11mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 7.6 mA ~ 55 mA |
| Supplier Device Package | 40-QFN (7x5) |
