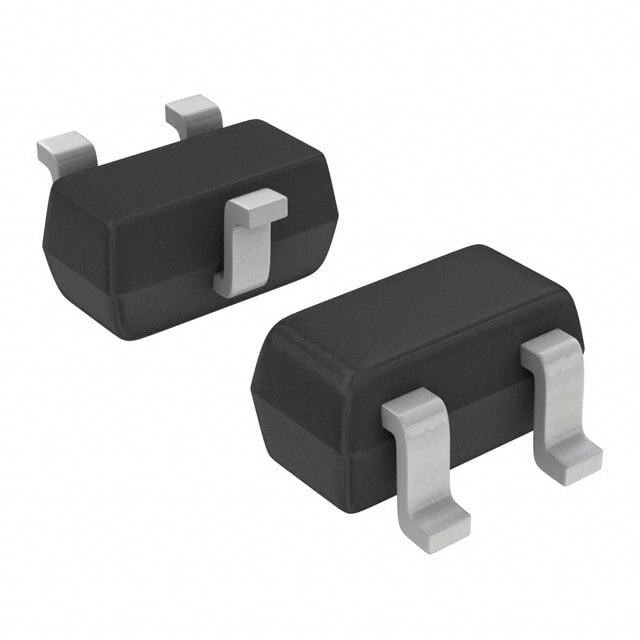

onsemi 5LN01S-TL-E
Image shown is a representation only
Manufacturer
Manufacturer No
5LN01S-TL-E
Package
SC-75, SOT-416
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 50V 100MA SMCP
Detailed Description
N-Channel 50 V 100mA (Ta) 150mW (Ta) Surface Mount SMCP
DataSheet
Mfr
onsemi
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±10V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
SC-75, SOT-416
Base Product Number
5LN01
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
7.8Ohm @ 50mA, 4V
Power Dissipation (Max)
150mW (Ta)
Supplier Device Package
SMCP
Gate Charge (Qg) (Max) @ Vgs
1.57 nC @ 10 V
Drain to Source Voltage (Vdss)
50 V
Input Capacitance (Ciss) (Max) @ Vds
6.6 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4V
Current - Continuous Drain (Id) @ 25°C
100mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±10V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | SC-75, SOT-416 |
| Base Product Number | 5LN01 |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 7.8Ohm @ 50mA, 4V |
| Power Dissipation (Max) | 150mW (Ta) |
| Supplier Device Package | SMCP |
| Gate Charge (Qg) (Max) @ Vgs | 1.57 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6.6 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
