Step1: Product
onsemi 2SC5226A-4-TL-E

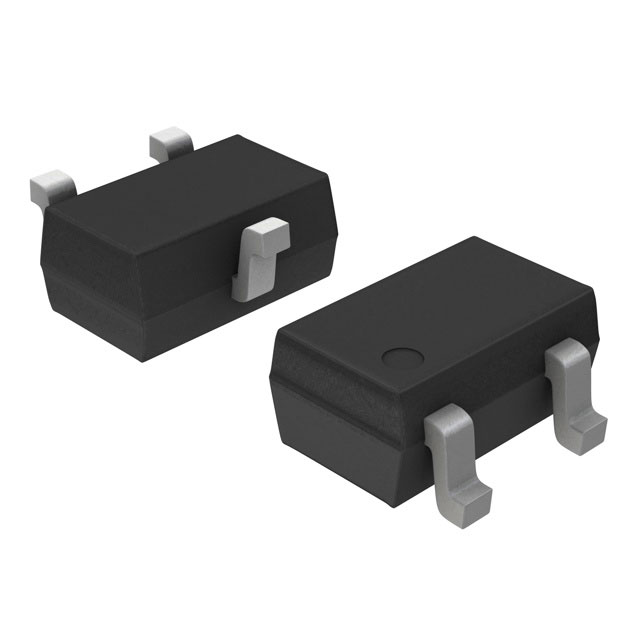

Image shown is a representation only
Manufacturer
Manufacturer No
2SC5226A-4-TL-E
Quantity
230
Availability
In Stock
Package
SC-70, SOT-323
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TRANS NPN 10V 7GHZ SC-70 MCP3
Detailed Description
RF Transistor NPN 10V 70mA 7GHz 150mW Surface Mount SC-70 / MCP3
DataSheet
Gain
12dB
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
150mW
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
SC-70, SOT-323
Transistor Type
NPN
Base Product Number
2SC5226
Operating Temperature
150°C (TJ)
Frequency - Transition
7GHz
Supplier Device Package
SC-70 / MCP3
Noise Figure (dB Typ @ f)
1dB @ 1GHz
Current - Collector (Ic) (Max)
70mA
DC Current Gain (hFE) (Min) @ Ic, Vce
90 @ 20mA, 5V
Voltage - Collector Emitter Breakdown (Max)
10V
| Attribute | Value |
|---|---|
| Gain | 12dB |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 150mW |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Base Product Number | 2SC5226 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 7GHz |
| Supplier Device Package | SC-70 / MCP3 |
| Noise Figure (dB Typ @ f) | 1dB @ 1GHz |
| Current - Collector (Ic) (Max) | 70mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 20mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
