Step1: Product

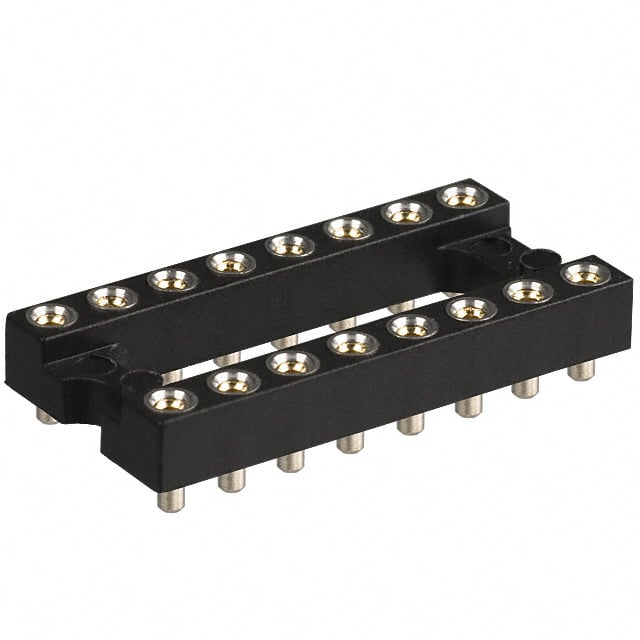

On Shore Technology Inc. BU160Z-178-HT
Image shown is a representation only
Manufacturer
Manufacturer No
BU160Z-178-HT
Packaging
Tube
Description
CONN IC DIP SOCKET 16POS GOLD
Detailed Description
16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount
DataSheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Series
BU-178HT
Features
Open Frame
Packaging
Tube
Part Status
Obsolete
Termination
Solder
Manufacturer
On Shore Technology Inc.
Pitch - Post
0.100" (2.54mm)
Mounting Type
Surface Mount
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Resistance
7mOhm
Base Product Number
BU160Z
Contact Finish - Post
Copper
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Brass
Termination Post Length
0.059" (1.50mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Number of Positions or Pins (Grid)
16 (2 x 8)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Series | BU-178HT |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | On Shore Technology Inc. |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Resistance | 7mOhm |
| Base Product Number | BU160Z |
| Contact Finish - Post | Copper |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Brass |
| Termination Post Length | 0.059" (1.50mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
