Step1: Product

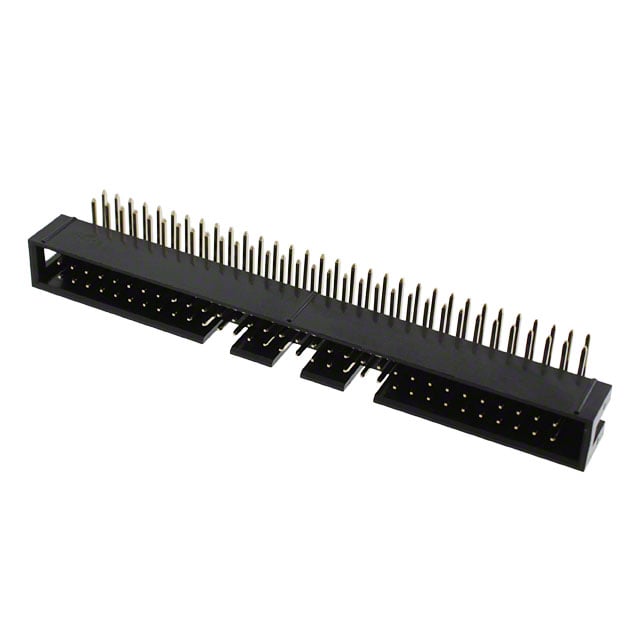

On Shore Technology Inc. 302-R641
Image shown is a representation only
Manufacturer
Manufacturer No
302-R641
Packaging
Tray
Description
CONN HEADER R/A 64POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)
DataSheet
Mfr
On Shore Technology Inc.
Style
Board to Cable/Wire
Series
302
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.358" (9.10mm)
Base Product Number
302-R64
Insulation Material
Polyester, Glass Filled
Number of Positions
64
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
1.25µin (0.032µm)
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | On Shore Technology Inc. |
| Style | Board to Cable/Wire |
| Series | 302 |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.358" (9.10mm) |
| Base Product Number | 302-R64 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 64 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | Flash |
