Step1: Product

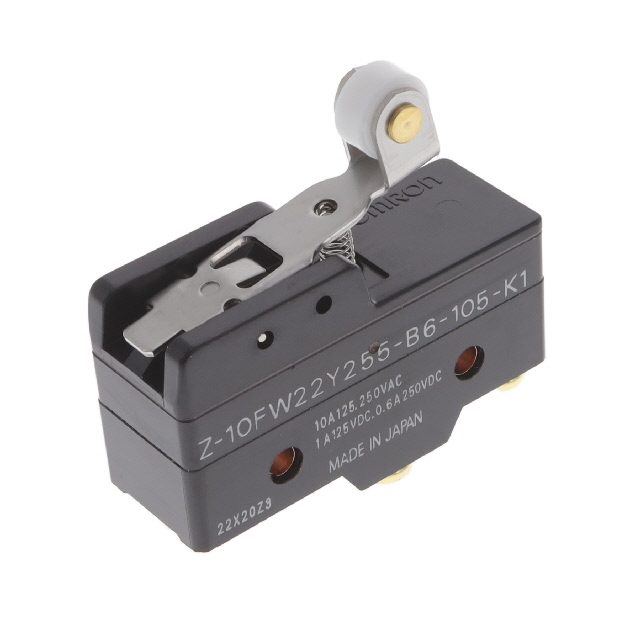

Omron Automation and Safety Z-10FW22Y255-B6-105-K1
Image shown is a representation only
Manufacturer
Manufacturer No
Z-10FW22Y255-B6-105-K1
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 10A 125V
Detailed Description
Switch SPDT (DB/DM) Chassis Mount
DataSheet
Series
Z
Circuit
SPDT (DB/DM)
Packaging
Bulk
Overtravel
0.094" (2.4mm)
Part Status
Active
Manufacturer
Omron Automation and Safety
Actuator Type
Lever, Roller
Mounting Type
Chassis Mount
Release Force
35gf
Electrical Life
100,000 Cycles
Mechanical Life
500,000 Cycles
Operating Force
250gf
Switch Function
On-Mom
Termination Style
Screw Terminal
Ingress Protection
IP62
Operating Position
1.188" (30.2mm)
Base Product Number
Z-10FW22
Differential Travel
0.040" (1.0mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
10A (AC/DC)
Operating Temperature
-15°C ~ 80°C
| Attribute | Value |
|---|---|
| Series | Z |
| Circuit | SPDT (DB/DM) |
| Packaging | Bulk |
| Overtravel | 0.094" (2.4mm) |
| Part Status | Active |
| Manufacturer | Omron Automation and Safety |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Release Force | 35gf |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 500,000 Cycles |
| Operating Force | 250gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Ingress Protection | IP62 |
| Operating Position | 1.188" (30.2mm) |
| Base Product Number | Z-10FW22 |
| Differential Travel | 0.040" (1.0mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 10A (AC/DC) |
| Operating Temperature | -15°C ~ 80°C |
