Step1: Product

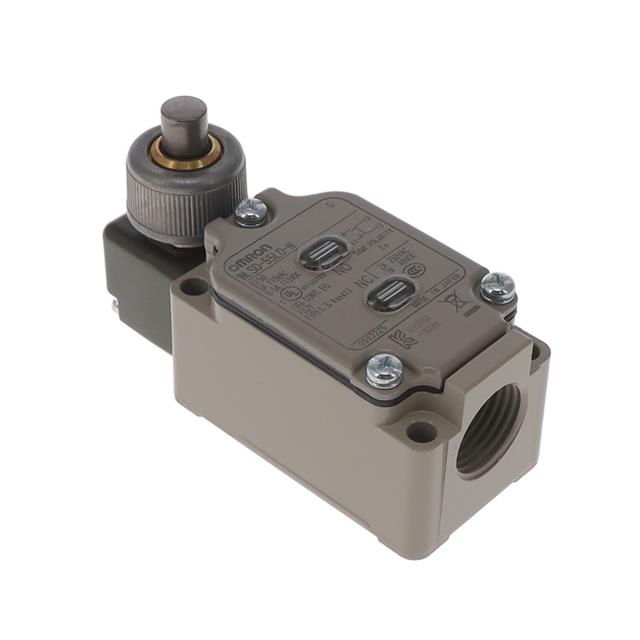

Omron Automation and Safety WLSD55LDN
Image shown is a representation only
Manufacturer
Manufacturer No
WLSD55LDN
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 10A 125V
Detailed Description
Switch SPDT (DB/DM) Chassis Mount
DataSheet
Series
WL-N
Circuit
SPDT (DB/DM)
Packaging
Bulk
Pretravel
0.110" (2.8mm)
Overtravel
0.219" (5.6mm)
Part Status
Active
Manufacturer
Omron Automation and Safety
Actuator Type
Side Plunger
Mounting Type
Chassis Mount
Release Force
907gf
Electrical Life
750,000 Cycles
Mechanical Life
15,000,000 Cycles
Operating Force
4082gf
Switch Function
On-Mom
Termination Style
Screw Terminal
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
1.600" (40.6mm)
Base Product Number
WLSD
Differential Travel
0.040" (1.0mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
10A (AC), 6A (DC)
Operating Temperature
-10°C ~ 80°C
| Attribute | Value |
|---|---|
| Series | WL-N |
| Circuit | SPDT (DB/DM) |
| Packaging | Bulk |
| Pretravel | 0.110" (2.8mm) |
| Overtravel | 0.219" (5.6mm) |
| Part Status | Active |
| Manufacturer | Omron Automation and Safety |
| Actuator Type | Side Plunger |
| Mounting Type | Chassis Mount |
| Release Force | 907gf |
| Electrical Life | 750,000 Cycles |
| Mechanical Life | 15,000,000 Cycles |
| Operating Force | 4082gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 1.600" (40.6mm) |
| Base Product Number | WLSD |
| Differential Travel | 0.040" (1.0mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Operating Temperature | -10°C ~ 80°C |
