Step1: Product
OmniOn Power™ QBDS108A0B41-HZ

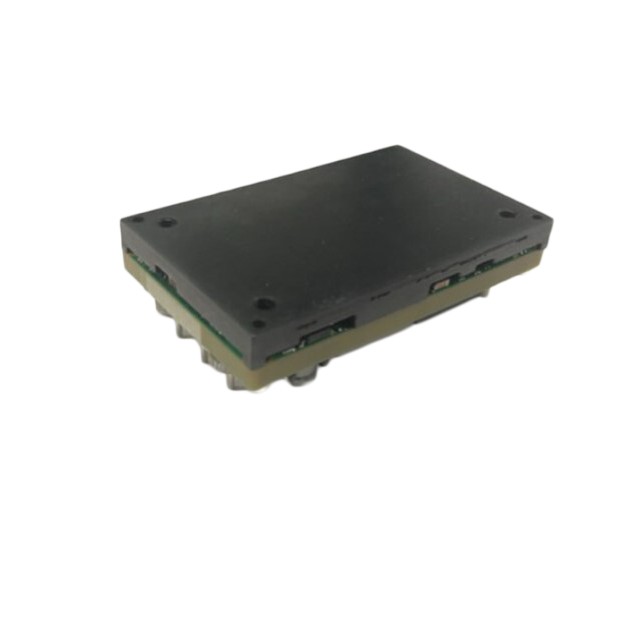

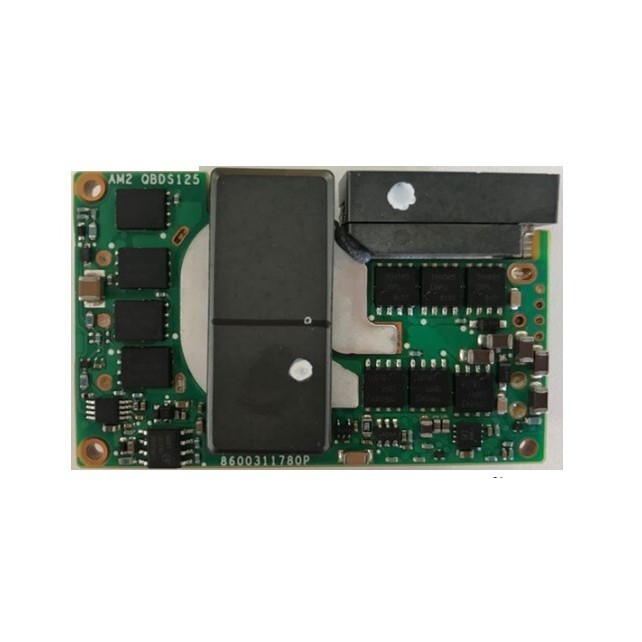

Image shown is a representation only
Manufacturer
Manufacturer No
QBDS108A0B41-HZ
Packaging
Tray
Description
BUS CONVERTER, 1300W QUARTER-BRI
Detailed Description
Open Frame DC DC Converter 1 Output 12V 108.3A 60V Input
DataSheet
Type
Open Frame
Series
QBDS108A0B Barracuda™
Packaging
Tray
Efficiency
97.5%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
OmniOn Power™
Mounting Type
Chassis Mount
Power (Watts)
1300W
Standard Number
60950-1; 62368-1
Size / Dimension
2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Isolation
750 V
Operating Temperature
-5°C ~ 85°C
Voltage - Input (Max)
60V
Voltage - Input (Min)
48V
Current - Output (Max)
108.3A
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | QBDS108A0B Barracuda™ |
| Packaging | Tray |
| Efficiency | 97.5% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | OmniOn Power™ |
| Mounting Type | Chassis Mount |
| Power (Watts) | 1300W |
| Standard Number | 60950-1; 62368-1 |
| Size / Dimension | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Isolation | 750 V |
| Operating Temperature | -5°C ~ 85°C |
| Voltage - Input (Max) | 60V |
| Voltage - Input (Min) | 48V |
| Current - Output (Max) | 108.3A |
