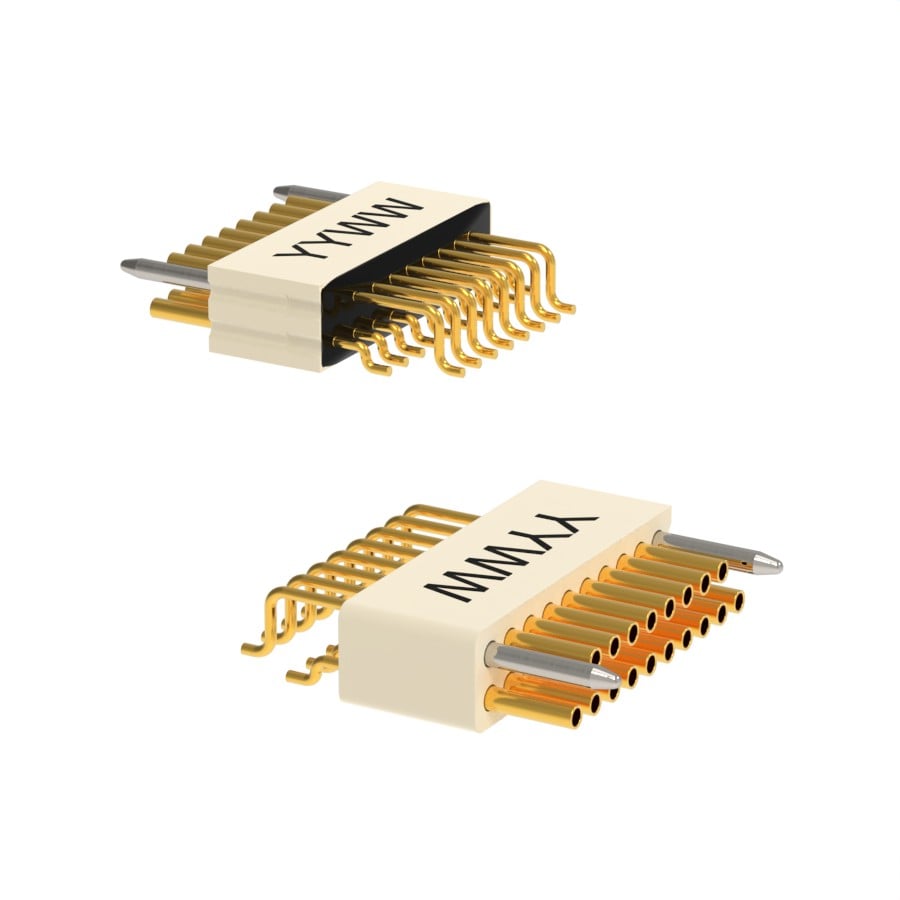

Omnetics A79041-001
Image shown is a representation only
Manufacturer
Manufacturer No
A79041-001
Packaging
Case
Description
NANO 18 SKT FEMALE R/A SMT W/ 2
Detailed Description
18 Position Receptacle Connector 0.025" (0.64mm) Surface Mount, Right Angle Gold
DataSheet
Mfr
Omnetics
Style
Board to Board
Series
Nano Strip
Features
Guide Pin
Packaging
Case
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.025" (0.64mm)
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.070" (1.78mm)
Insulation Material
Thermoplastic
Number of Positions
18
Row Spacing - Mating
0.030" (0.76mm)
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
1A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Style | Board to Board |
| Series | Nano Strip |
| Features | Guide Pin |
| Packaging | Case |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.025" (0.64mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.070" (1.78mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.030" (0.76mm) |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
