Step1: Product

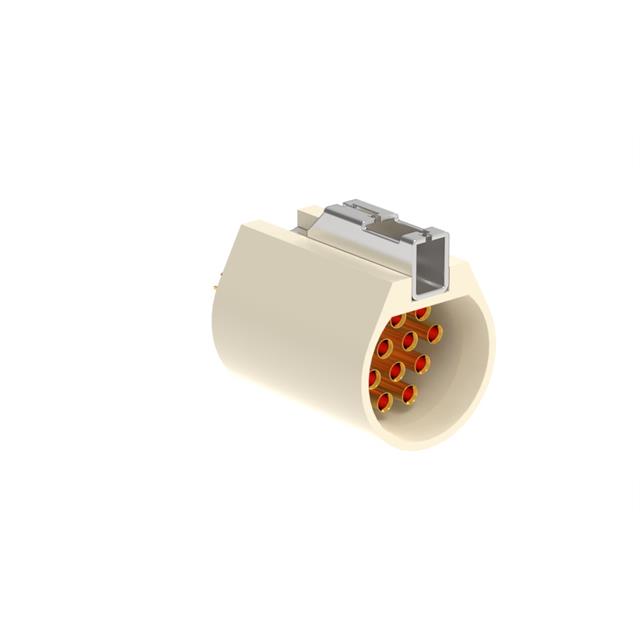

Omnetics A22028-001
Image shown is a representation only
Manufacturer
Manufacturer No
A22028-001
Packaging
Bag
Description
MICRO CIRCULAR 12 SOCKET FEMALE
Detailed Description
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Omnetics
Color
Natural
Series
Micro 360®
Packaging
Bag
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Latch Lock
Shell Material
Liquid Crystal Polymer (LCP)
Insert Material
Liquid Crystal Polymer (LCP)
Contact Material
Copper Alloy
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
12
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Color | Natural |
| Series | Micro 360® |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Latch Lock |
| Shell Material | Liquid Crystal Polymer (LCP) |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Copper Alloy |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 12 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
