Olimex LTD SM-42HB34F08AB

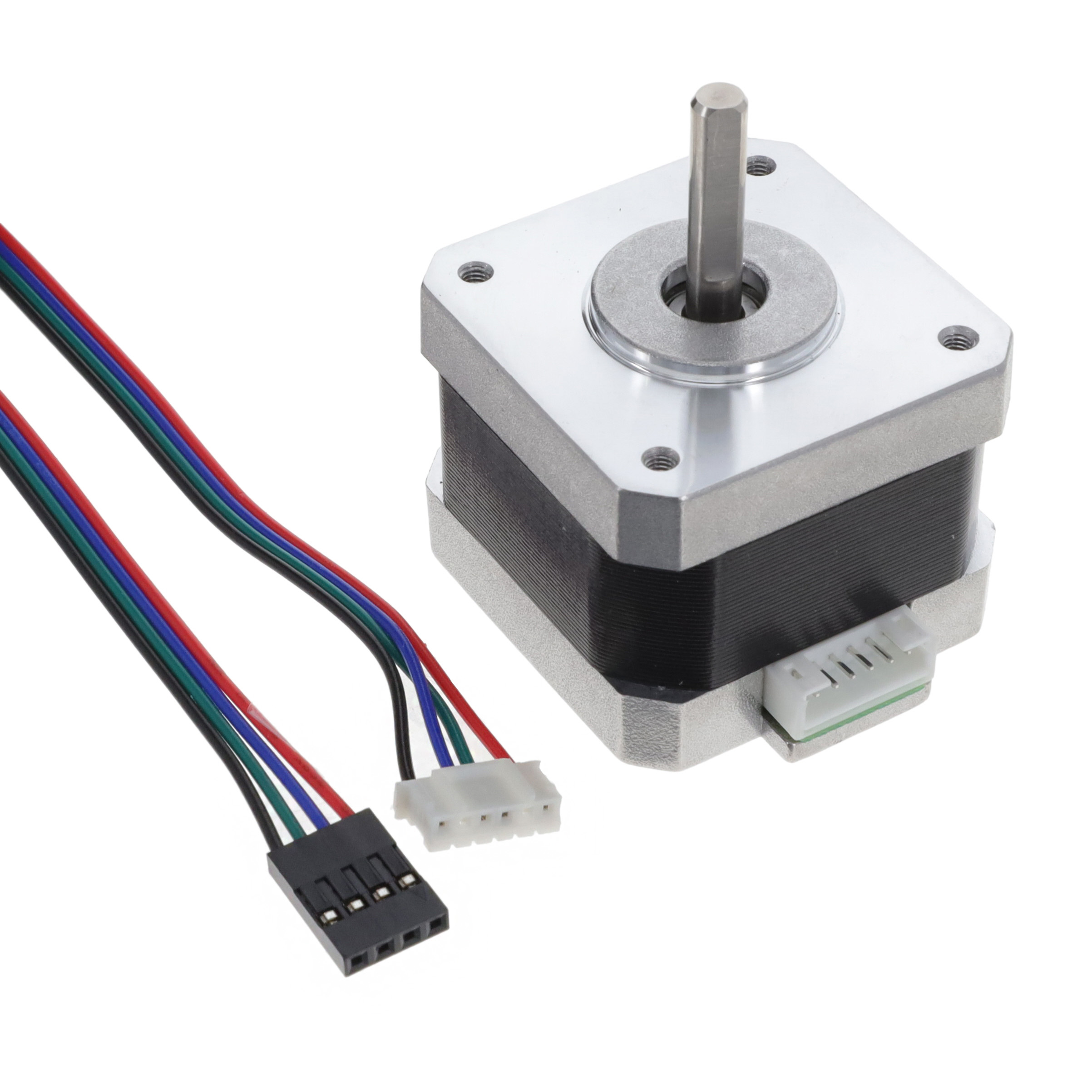

Image shown is a representation only
Manufacturer
Manufacturer No
SM-42HB34F08AB
Packaging
Bulk
Description
STEP MOTOR HYBRID BIPOLAR 12VDC
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 1.33 A 12VDC
DataSheet
Mfr
Olimex LTD
Type
Hybrid
Features
Round Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Part Status
Active
Coil Resistance
2.2 Ohms
NEMA Frame Size
17
Voltage - Rated
12VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Wire Leads with Connector
Steps per Revolution
200.0
Current Rating (Amps)
1.33 A
Mounting Hole Spacing
1.220" (31.00mm)
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
31.15 / 220
| Attribute | Value |
|---|---|
| Mfr | Olimex LTD |
| Type | Hybrid |
| Features | Round Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Part Status | Active |
| Coil Resistance | 2.2 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 12VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1.33 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 31.15 / 220 |
