Step1: Product
Ole Wolff Electronics Inc OWR-061220LA-32

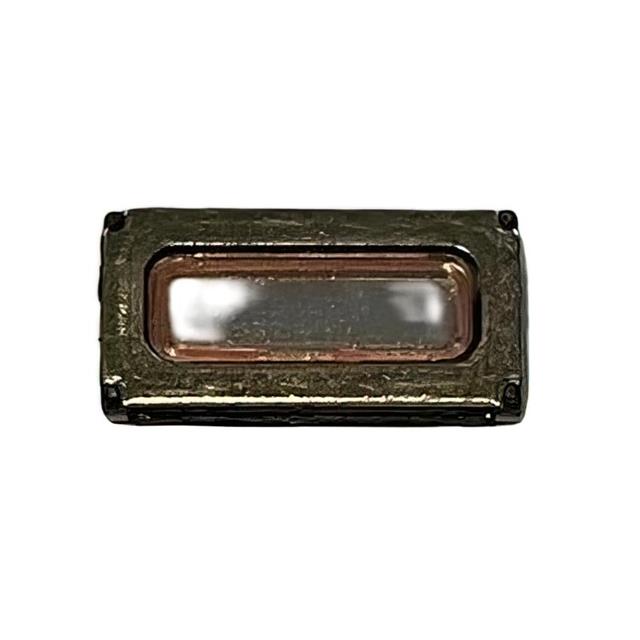

Image shown is a representation only
Manufacturer
Manufacturer No
OWR-061220LA-32
Packaging
Tray
Description
SPEAKER 32OHM 10MW TOP PORT 88DB
Detailed Description
32 Ohms Receiver Speaker 10 mW 100 Hz ~ 20 kHz Top Rectangular
DataSheet
Type
Receiver
Shape
Rectangular
Impedance
32 Ohms
Packaging
Tray
Technology
Magnetic
Part Status
Active
Power - Max
20 mW
Termination
Solder Pads
Manufacturer
Ole Wolff Electronics Inc
Port Location
Top
Power - Rated
10 mW
Frequency Range
100 Hz ~ 20 kHz
Material - Cone
Plastic
Efficiency - dBA
88.00
Size / Dimension
0.236" L x 0.472" W (6.00mm x 12.00mm)
Efficiency - Type
Sensitivity
Material - Magnet
Nd-Fe-B
Ingress Protection
IP67 - Dust Tight, Waterproof
Efficiency - Testing
10mW/10mm
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-20°C ~ 70°C
Frequency - Self Resonant
450Hz
| Attribute | Value |
|---|---|
| Type | Receiver |
| Shape | Rectangular |
| Impedance | 32 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Part Status | Active |
| Power - Max | 20 mW |
| Termination | Solder Pads |
| Manufacturer | Ole Wolff Electronics Inc |
| Port Location | Top |
| Power - Rated | 10 mW |
| Frequency Range | 100 Hz ~ 20 kHz |
| Material - Cone | Plastic |
| Efficiency - dBA | 88.00 |
| Size / Dimension | 0.236" L x 0.472" W (6.00mm x 12.00mm) |
| Efficiency - Type | Sensitivity |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Efficiency - Testing | 10mW/10mm |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency - Self Resonant | 450Hz |
