Step1: Product
Ohmite CCU1011E

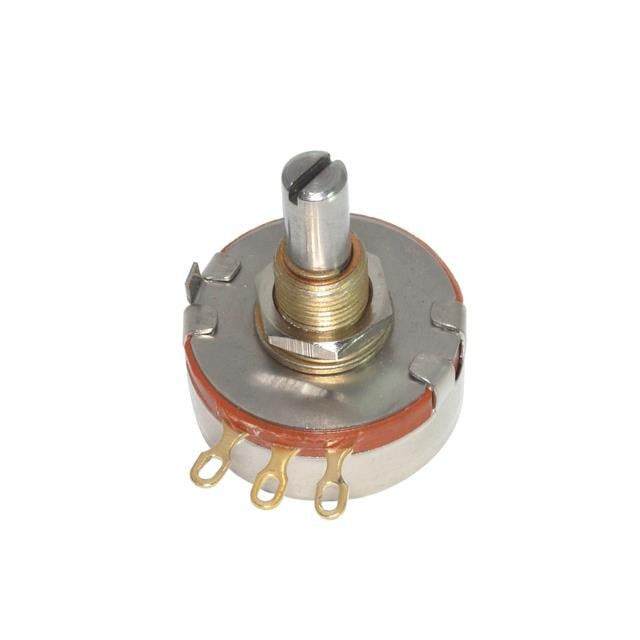

Image shown is a representation only
Manufacturer
Manufacturer No
CCU1011E
Packaging
Case
Description
2 Watt Carbon Pot Type Ccu 10%
Detailed Description
100 Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns 2W Solder Lug
DataSheet
Taper
Linear
Series
CCU
Rotation
312°
Packaging
Case
Tolerance
±10%
Part Status
Active
Size - Body
Round - 1.157" Dia x 0.626" H (29.40mm x 15.90mm)
Manufacturer
Ohmite
Actuator Type
Slotted
Mounting Type
Panel Mount
Power (Watts)
2W
Bushing Thread
3/8-32
Actuator Length
0.874" (22.20mm)
Adjustment Type
User Defined
Built in Switch
None
Number of Gangs
2
Number of Turns
1.0
Actuator Diameter
0.250" (6.35mm)
Resistance (Ohms)
100
Termination Style
Solder Lug
| Attribute | Value |
|---|---|
| Taper | Linear |
| Series | CCU |
| Rotation | 312° |
| Packaging | Case |
| Tolerance | ±10% |
| Part Status | Active |
| Size - Body | Round - 1.157" Dia x 0.626" H (29.40mm x 15.90mm) |
| Manufacturer | Ohmite |
| Actuator Type | Slotted |
| Mounting Type | Panel Mount |
| Power (Watts) | 2W |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.874" (22.20mm) |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Number of Gangs | 2 |
| Number of Turns | 1.0 |
| Actuator Diameter | 0.250" (6.35mm) |
| Resistance (Ohms) | 100 |
| Termination Style | Solder Lug |
