Step1: Product
Ohmite 711-11E

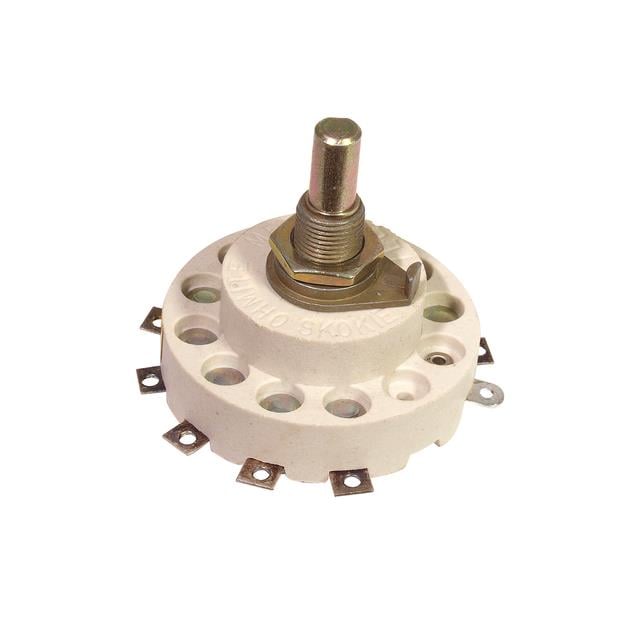

Image shown is a representation only
Manufacturer
Manufacturer No
711-11E
Packaging
Bulk
Description
SWITCH ROTARY 11POS 7A 125V
Detailed Description
Rotary Switch 11 Position SP11T 7A (AC/DC) 125 VAC Panel Mount
DataSheet
Series
711
Packaging
Bulk
Index Stops
Fixed
Part Status
Obsolete
Manufacturer
Ohmite
Actuator Type
Flatted (6.35mm Dia)
Mounting Type
Panel Mount
Angle of Throw
30°
Contact Timing
Non-Shorting (BBM)
Actuator Length
12.70mm
Number of Decks
1
Circuit per Deck
SP11T
Contact Material
Silver Alloy
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
Depth Behind Panel
20.60mm
Base Product Number
711-1
Number of Positions
11
Voltage Rating - AC
125 V
Voltage Rating - DC
20 V
Current Rating (Amps)
7A (AC/DC)
Panel Cutout Dimensions
Circular - 9.53mm Dia
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | 711 |
| Packaging | Bulk |
| Index Stops | Fixed |
| Part Status | Obsolete |
| Manufacturer | Ohmite |
| Actuator Type | Flatted (6.35mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 30° |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 12.70mm |
| Number of Decks | 1 |
| Circuit per Deck | SP11T |
| Contact Material | Silver Alloy |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Depth Behind Panel | 20.60mm |
| Base Product Number | 711-1 |
| Number of Positions | 11 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 20 V |
| Current Rating (Amps) | 7A (AC/DC) |
| Panel Cutout Dimensions | Circular - 9.53mm Dia |
| Number of Poles per Deck | 1 |
