Step1: Product

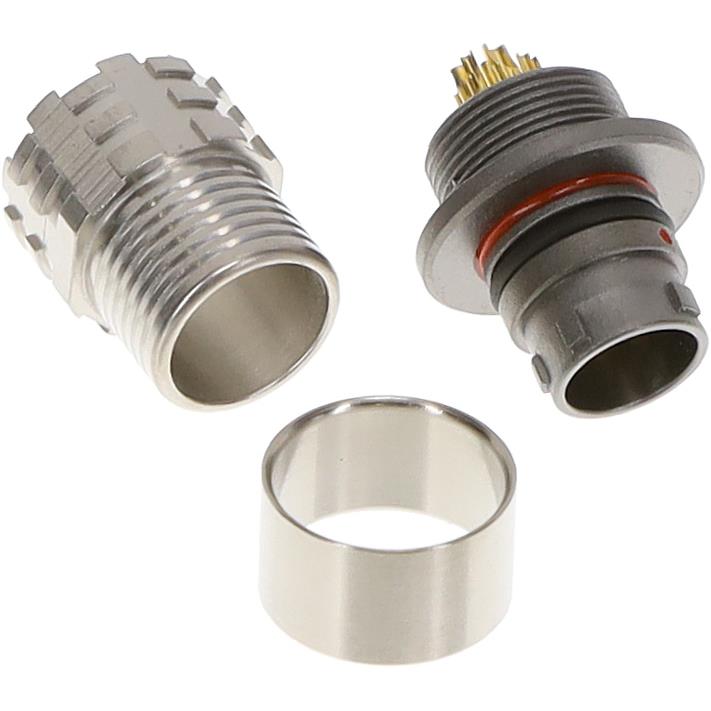

ODU A10WBM-P12XMM0-0000
Image shown is a representation only
Manufacturer
Manufacturer No
A10WBM-P12XMM0-0000
Packaging
Bulk
Description
ODU AMC HD PLUG, STY 1, SZ 0, SE
Detailed Description
12 (10 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Mfr
ODU
Color
Black, Silver
Series
ODU AMC® High-Density
Features
Backshell
Packaging
Bulk
Shielding
Shielded
Orientation
B
Termination
Solder Cup
Applications
Industrial, Medical, Military
Shell Finish
Ruthenium over Electroless Nickel
Cable Opening
0.276" (7.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Push-Pull, Detent Lock
Shell Material
Brass
Insert Material
Polyetheretherketone (PEEK)
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
A10WBM-P
Number of Positions
12 (10 + 2 Power)
Current Rating (Amps)
1A, 5A
Operating Temperature
-51°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Brass, Ruthenium over Electroless Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | ODU |
| Color | Black, Silver |
| Series | ODU AMC® High-Density |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | B |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Military |
| Shell Finish | Ruthenium over Electroless Nickel |
| Cable Opening | 0.276" (7.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Push-Pull, Detent Lock |
| Shell Material | Brass |
| Insert Material | Polyetheretherketone (PEEK) |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | A10WBM-P |
| Number of Positions | 12 (10 + 2 Power) |
| Current Rating (Amps) | 1A, 5A |
| Operating Temperature | -51°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Brass, Ruthenium over Electroless Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
