Step1: Product
NXP USA Inc. QN9080-001-M17AZ

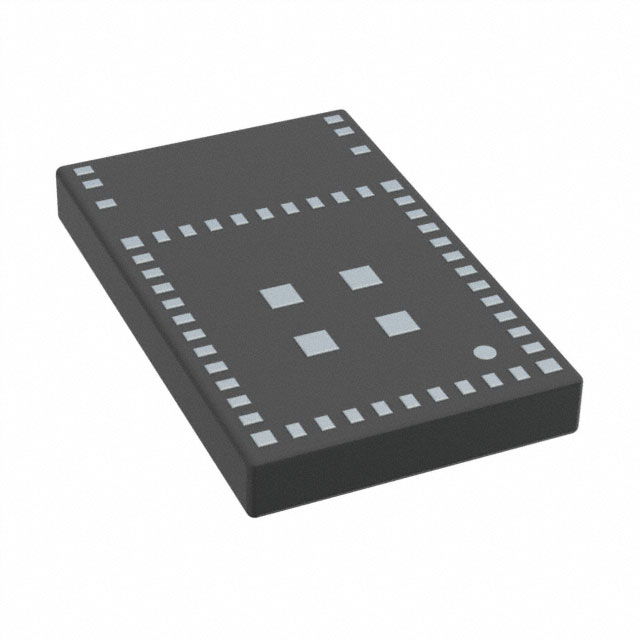

Image shown is a representation only
Manufacturer
Manufacturer No
QN9080-001-M17AZ
Package
54-LFLGA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC RF TXRX+MCU BLE 54LFLGA
Detailed Description
IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz ~ 2.4835GHz 54-LFLGA
Datasheet
Mfr
NXP USA Inc.
GPIO
32
Type
TxRx + MCU
Protocol
Bluetooth v5.0
Frequency
2.4GHz ~ 2.4835GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
FSK
Memory Size
512kB Flash, 128kB SRAM
Sensitivity
-92.7dBm
Mounting Type
Surface Mount
Package / Case
54-LFLGA
Power - Output
2dBm
Data Rate (Max)
2Mbps
Voltage - Supply
1.67V ~ 3.6V
Serial Interfaces
ADC, GPIO, I2C, SPI, UART, USART, USB
RF Family/Standard
Bluetooth
Base Product Number
QN9080
Current - Receiving
4mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
3.5mA
Supplier Device Package
54-LFLGA (9.7x6)
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| GPIO | 32 |
| Type | TxRx + MCU |
| Protocol | Bluetooth v5.0 |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | FSK |
| Memory Size | 512kB Flash, 128kB SRAM |
| Sensitivity | -92.7dBm |
| Mounting Type | Surface Mount |
| Package / Case | 54-LFLGA |
| Power - Output | 2dBm |
| Data Rate (Max) | 2Mbps |
| Voltage - Supply | 1.67V ~ 3.6V |
| Serial Interfaces | ADC, GPIO, I2C, SPI, UART, USART, USB |
| RF Family/Standard | Bluetooth |
| Base Product Number | QN9080 |
| Current - Receiving | 4mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 3.5mA |
| Supplier Device Package | 54-LFLGA (9.7x6) |
