NXP USA Inc. PTVS12VZ1USK315

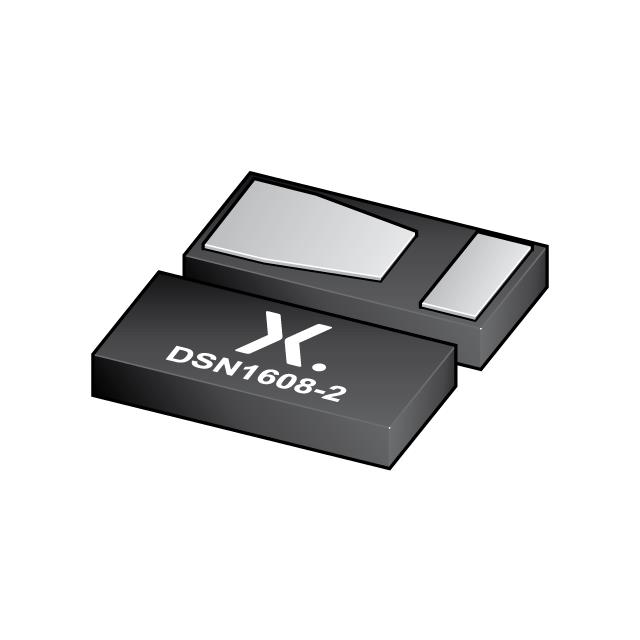

Image shown is a representation only
Manufacturer
Manufacturer No
PTVS12VZ1USK315
Package
0603 (1608 Metric)
Packaging
Bulk
Description
TVS DIODE 12VWM 21.8VC DSN16082
Detailed Description
21.8V Clamp 10.5A Ipp Tvs Diode Surface Mount DSN1608-2
DataSheet
Mfr
NXP USA Inc.
Type
Zener
Packaging
Bulk
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Power - Peak Pulse
1900W (1.9kW)
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Capacitance @ Frequency
430pF @ 1MHz
Supplier Device Package
DSN1608-2
Unidirectional Channels
1
Voltage - Breakdown (Min)
13.3V
Voltage - Clamping (Max) @ Ipp
21.8V
Voltage - Reverse Standoff (Typ)
12V (Max)
Current - Peak Pulse (10/1000µs)
10.5A
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| Type | Zener |
| Packaging | Bulk |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Power - Peak Pulse | 1900W (1.9kW) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Capacitance @ Frequency | 430pF @ 1MHz |
| Supplier Device Package | DSN1608-2 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 21.8V |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Current - Peak Pulse (10/1000µs) | 10.5A |
