NXP USA Inc. PM823UK/A0CZ

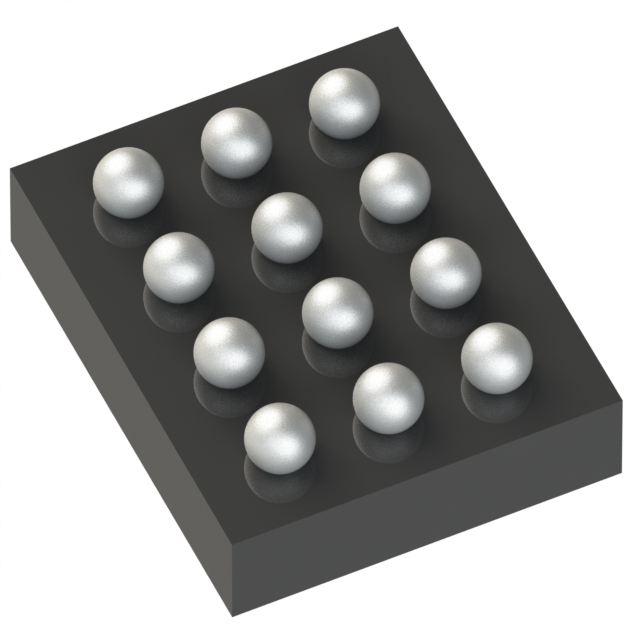

Image shown is a representation only
Manufacturer
Manufacturer No
PM823UK/A0CZ
Quantity
25
Availability
In Stock
Package
12-XFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
POWER MANAGEMENT IC, DUAL SYNCHR
Detailed Description
PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (1) 3MHz 12-WLCSP (1.55x1.18)
DataSheet
Topology
Step-Down (Buck) Synchronous (2), Linear (LDO) (1)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Obsolete
w/Sequencer
No
Manufacturer
NXP USA Inc.
w/LED Driver
No
w/Supervisor
No
Mounting Type
Surface Mount
Package / Case
12-XFBGA, WLCSP
Voltage - Supply
2.7V ~ 5.5V
Number of Outputs
3
Frequency - Switching
3MHz
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
12-WLCSP (1.55x1.18)
Voltage/Current - Output 1
1.1V, 1.5A
Voltage/Current - Output 2
2.2V, 1.5A
Voltage/Current - Output 3
1.8V, 525mA
| Attribute | Value |
|---|---|
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Obsolete |
| w/Sequencer | No |
| Manufacturer | NXP USA Inc. |
| w/LED Driver | No |
| w/Supervisor | No |
| Mounting Type | Surface Mount |
| Package / Case | 12-XFBGA, WLCSP |
| Voltage - Supply | 2.7V ~ 5.5V |
| Number of Outputs | 3 |
| Frequency - Switching | 3MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 12-WLCSP (1.55x1.18) |
| Voltage/Current - Output 1 | 1.1V, 1.5A |
| Voltage/Current - Output 2 | 2.2V, 1.5A |
| Voltage/Current - Output 3 | 1.8V, 525mA |
