Step1: Product

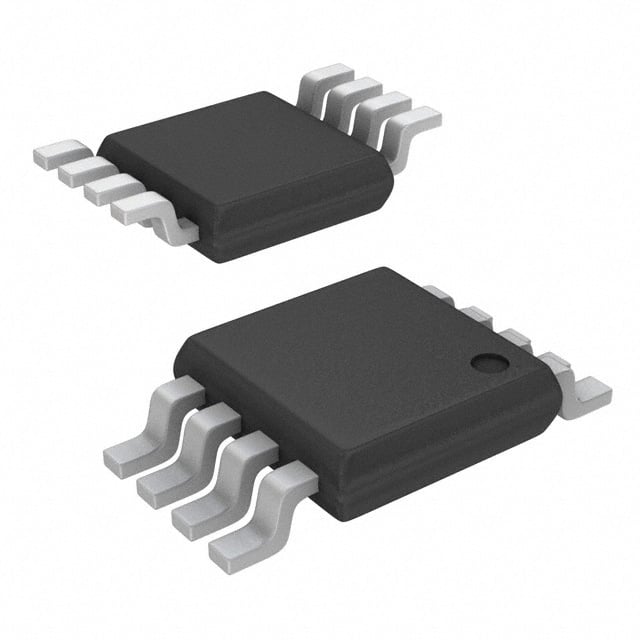

NXP USA Inc. PCA9509DP,118
Image shown is a representation only
Manufacturer
Manufacturer No
PCA9509DP,118
Quantity
39,050
Availability
In Stock
Package
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC REDRIVER I2C 2CH 8TSSOP
Detailed Description
Buffer, ReDriver 2 Channel 400kHz 8-TSSOP
Datasheet
Type
Buffer, ReDriver
Input
2-Wire Bus
Output
2-Wire Bus
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
I2C
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Data Rate (Max)
400kHz
Current - Supply
3mA
Voltage - Supply
3V ~ 5.5V
Number of Channels
2
Base Product Number
PCA9509
Capacitance - Input
2 pF
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
8-TSSOP
| Attribute | Value |
|---|---|
| Type | Buffer, ReDriver |
| Input | 2-Wire Bus |
| Output | 2-Wire Bus |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | I2C |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Data Rate (Max) | 400kHz |
| Current - Supply | 3mA |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Channels | 2 |
| Base Product Number | PCA9509 |
| Capacitance - Input | 2 pF |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 8-TSSOP |
