Step1: Product
NXP USA Inc. MPX5010GS

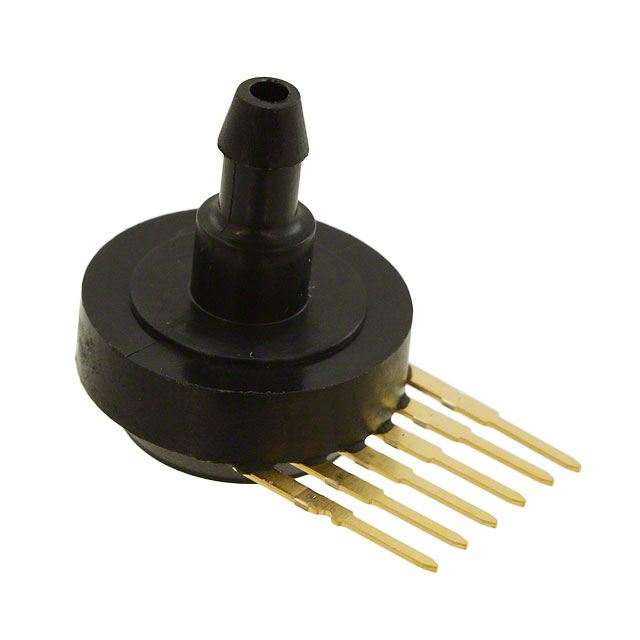

Image shown is a representation only
Manufacturer
Manufacturer No
MPX5010GS
Package
6-SIP Module
Packaging
Tray
Description
SENSOR 1.45PSIG 0.19" 4.7V
Detailed Description
Pressure Sensor 1.45PSI (10kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0.2 V ~ 4.7 V 6-SIP Module
DataSheet
Output
0.2 V ~ 4.7 V
Series
MPX5010
Accuracy
±5%
Features
Temperature Compensated
Packaging
Tray
Port Size
Male - 0.19" (4.93mm) Tube
Port Style
Barbed
Output Type
Analog Voltage
Part Status
Obsolete
Applications
Board Mount
Manufacturer
NXP USA Inc.
Mounting Type
Through Hole
Pressure Type
Vented Gauge
Package / Case
6-SIP Module
Maximum Pressure
5.8PSI (40kPa)
Voltage - Supply
4.75V ~ 5.25V
Termination Style
PC Pin
Operating Pressure
1.45PSI (10kPa)
Base Product Number
MPX50
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Output | 0.2 V ~ 4.7 V |
| Series | MPX5010 |
| Accuracy | ±5% |
| Features | Temperature Compensated |
| Packaging | Tray |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Output Type | Analog Voltage |
| Part Status | Obsolete |
| Applications | Board Mount |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Through Hole |
| Pressure Type | Vented Gauge |
| Package / Case | 6-SIP Module |
| Maximum Pressure | 5.8PSI (40kPa) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Termination Style | PC Pin |
| Operating Pressure | 1.45PSI (10kPa) |
| Base Product Number | MPX50 |
| Operating Temperature | -40°C ~ 125°C |
