Step1: Product

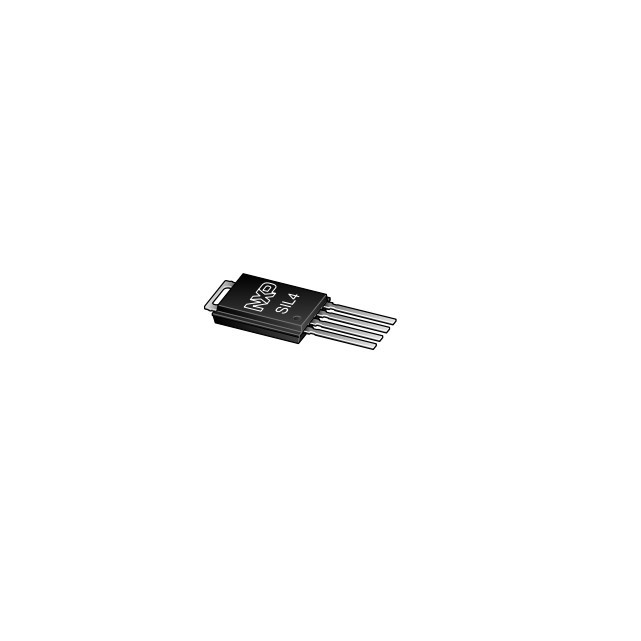

NXP USA Inc. KMA321/AZ
Image shown is a representation only
Manufacturer
Manufacturer No
KMA321/AZ
Package
4-SIP Module
Packaging
Tape & Reel (TR)
Description
PROGRAMMABLE ANGLE SENSOR
Detailed Description
Magnetoresistive Sensor Angle External Magnet, Not Included PC Pin
Datasheet
Grade
Automotive
Output
Analog Voltage
Linearity
±1.2°
Packaging
Tape & Reel (TR)
Technology
Magnetoresistive
Manufacturer
NXP USA Inc.
Actuator Type
External Magnet, Not Included
For Measuring
Angle
Mounting Type
Through Hole
Output Signal
Clockwise Increase
Qualification
AEC-Q100
Package / Case
4-SIP Module
Voltage - Supply
4.5V ~ 5.5V
Termination Style
PC Pin
Operating Temperature
-40°C ~ 180°C
Supplier Device Package
4-SIL
Rotation Angle - Electrical, Mechanical
0° ~ 180°
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | Analog Voltage |
| Linearity | ±1.2° |
| Packaging | Tape & Reel (TR) |
| Technology | Magnetoresistive |
| Manufacturer | NXP USA Inc. |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle |
| Mounting Type | Through Hole |
| Output Signal | Clockwise Increase |
| Qualification | AEC-Q100 |
| Package / Case | 4-SIP Module |
| Voltage - Supply | 4.5V ~ 5.5V |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 180°C |
| Supplier Device Package | 4-SIL |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
