NXP USA Inc. JN5148/001,531

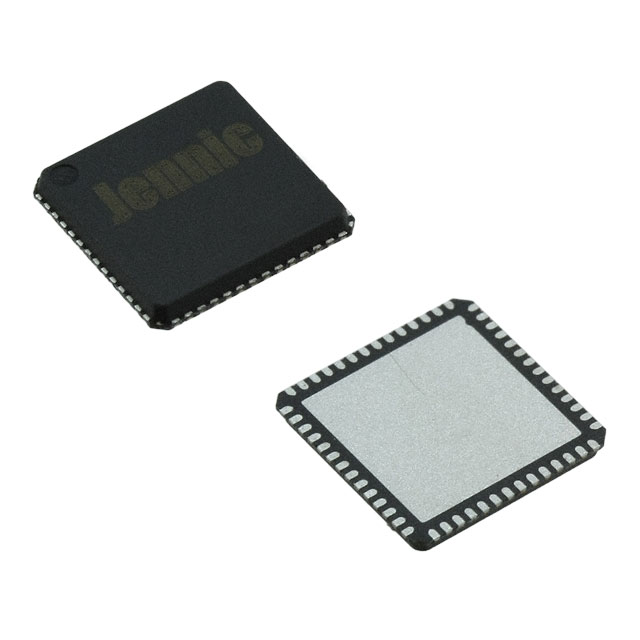

Image shown is a representation only
Manufacturer
Manufacturer No
JN5148/001,531
Package
56-VFQFN
Packaging
Tape & Reel (TR)
Description
IC RF TXRX+MCU 802.15.4 56VFQFN
Detailed Description
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 56-VFQFN
DataSheet
Mfr
NXP USA Inc.
GPIO
21
Type
TxRx + MCU
Protocol
Zigbee®
Frequency
2.4GHz
Packaging
Tape & Reel (TR)
Modulation
O-QPSK
Memory Size
128kB ROM, 128kB RAM
Part Status
Obsolete
Sensitivity
-96.5dBm
Package / Case
56-VFQFN
Power - Output
2.75dBm
Data Rate (Max)
667kbps
Voltage - Supply
2V ~ 3.6V
Serial Interfaces
I2C, JTAG, SPI, UART
RF Family/Standard
802.15.4
Base Product Number
JN514
Current - Receiving
17.5mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
15mA
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| GPIO | 21 |
| Type | TxRx + MCU |
| Protocol | Zigbee® |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | O-QPSK |
| Memory Size | 128kB ROM, 128kB RAM |
| Part Status | Obsolete |
| Sensitivity | -96.5dBm |
| Package / Case | 56-VFQFN |
| Power - Output | 2.75dBm |
| Data Rate (Max) | 667kbps |
| Voltage - Supply | 2V ~ 3.6V |
| Serial Interfaces | I2C, JTAG, SPI, UART |
| RF Family/Standard | 802.15.4 |
| Base Product Number | JN514 |
| Current - Receiving | 17.5mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 15mA |
