NXP USA Inc. BAT54S/6235

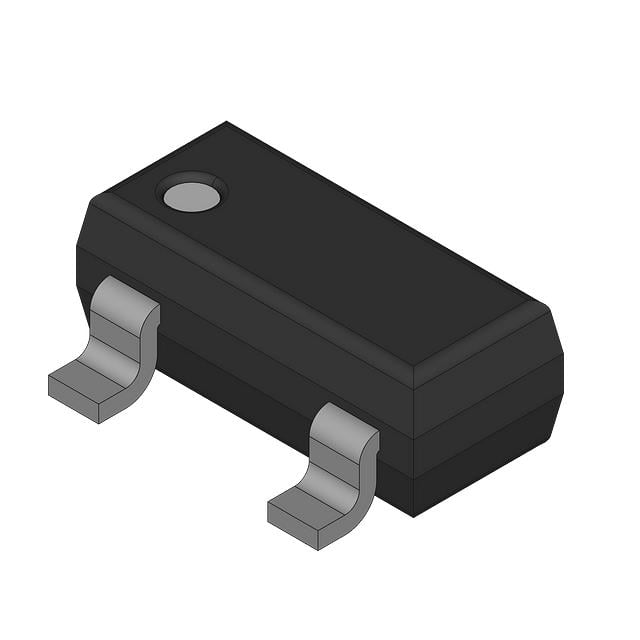

Image shown is a representation only
Manufacturer
Manufacturer No
BAT54S/6235
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Bulk
Description
DIODE ARR SCHOT 30V 200MA SOT233
Detailed Description
Diode Array 1 Pair Series Connection 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
DataSheet
Speed
Small Signal =< 200mA (Io), Any Speed
Packaging
Bulk
Technology
Schottky
Part Status
Active
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Base Product Number
BAT54
Diode Configuration
1 Pair Series Connection
Supplier Device Package
SOT23-3 (TO-236)
Reverse Recovery Time (trr)
5 ns
Current - Reverse Leakage @ Vr
2 µA @ 25 V
Voltage - DC Reverse (Vr) (Max)
30 V
Operating Temperature - Junction
150°C
Voltage - Forward (Vf) (Max) @ If
800 mV @ 100 mA
Current - Average Rectified (Io) (per Diode)
200mA
| Attribute | Value |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Packaging | Bulk |
| Technology | Schottky |
| Part Status | Active |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | BAT54 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | SOT23-3 (TO-236) |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Operating Temperature - Junction | 150°C |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Current - Average Rectified (Io) (per Diode) | 200mA |
