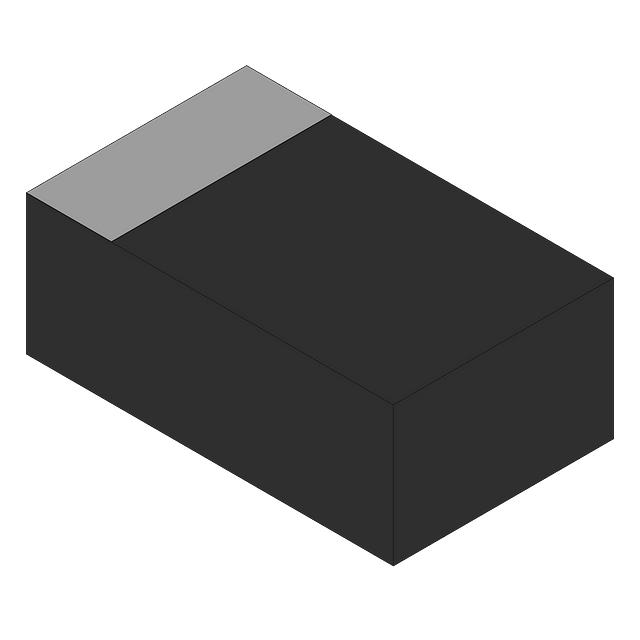

NXP Semiconductors PESD5V0F1BRLDYL
Image shown is a representation only
Manufacturer
Manufacturer No
PESD5V0F1BRLDYL
Quantity
8
Availability
In Stock
Package
2-XDFN
Packaging
Bulk
Description
TVS DIODE 5.5VWM 15VC DFN1006D-2
Detailed Description
15V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN1006D-2
DataSheet
Mfr
NXP Semiconductors
Type
Zener
Grade
Automotive
Packaging
Bulk
Part Status
Active
Applications
Ethernet
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q101
Package / Case
2-XDFN
Base Product Number
PESD5
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.4pF @ 1MHz
Supplier Device Package
DFN1006D-2
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
15V
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
2.5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | NXP Semiconductors |
| Type | Zener |
| Grade | Automotive |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Ethernet |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q101 |
| Package / Case | 2-XDFN |
| Base Product Number | PESD5 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Supplier Device Package | DFN1006D-2 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) |
