Step1: Product

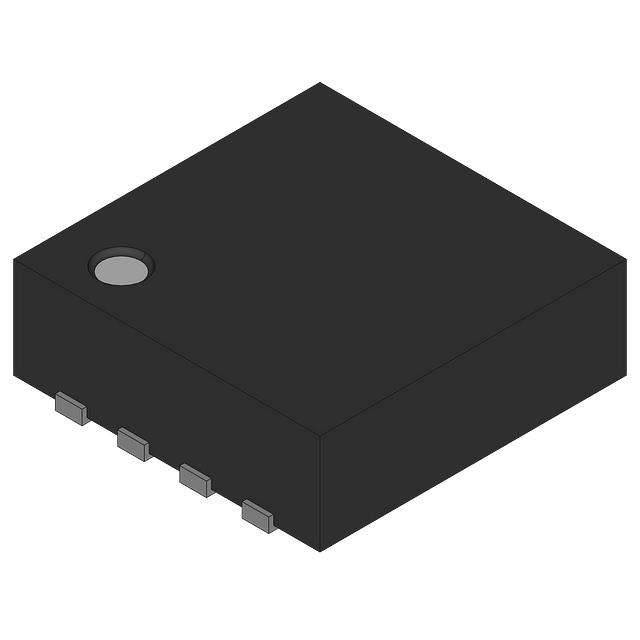

NXP Semiconductors NX3L2G384GM,125
Image shown is a representation only
Manufacturer
Manufacturer No
NX3L2G384GM,125
Package
8-XFQFN Exposed Pad
Packaging
Bulk
Description
IC SW SPST-NOX2 900MOHM 8XQFN
Detailed Description
2 Circuit IC Switch 1:1 900mOhm 8-XQFN (1.6x1.6)
DataSheet
Crosstalk
-90dB @ 100kHz
Packaging
Bulk
Part Status
Obsolete
Manufacturer
NXP Semiconductors
Mounting Type
Surface Mount
-3db Bandwidth
60MHz
Package / Case
8-XFQFN Exposed Pad
Switch Circuit
SPST - NO
Charge Injection
6pC
Number of Circuits
2
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
8-XQFN (1.6x1.6)
On-State Resistance (Max)
900mOhm
Switch Time (Ton, Toff) (Max)
24ns, 7ns
Voltage - Supply, Single (V+)
1.4V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
1:1
Channel-to-Channel Matching (ΔRon)
20mOhm
Channel Capacitance (CS(off), CD(off))
35pF
| Attribute | Value |
|---|---|
| Crosstalk | -90dB @ 100kHz |
| Packaging | Bulk |
| Part Status | Obsolete |
| Manufacturer | NXP Semiconductors |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 60MHz |
| Package / Case | 8-XFQFN Exposed Pad |
| Switch Circuit | SPST - NO |
| Charge Injection | 6pC |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 8-XQFN (1.6x1.6) |
| On-State Resistance (Max) | 900mOhm |
| Switch Time (Ton, Toff) (Max) | 24ns, 7ns |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
