Step1: Product
NVE Corp/Sensor Products IL610-1ETR7

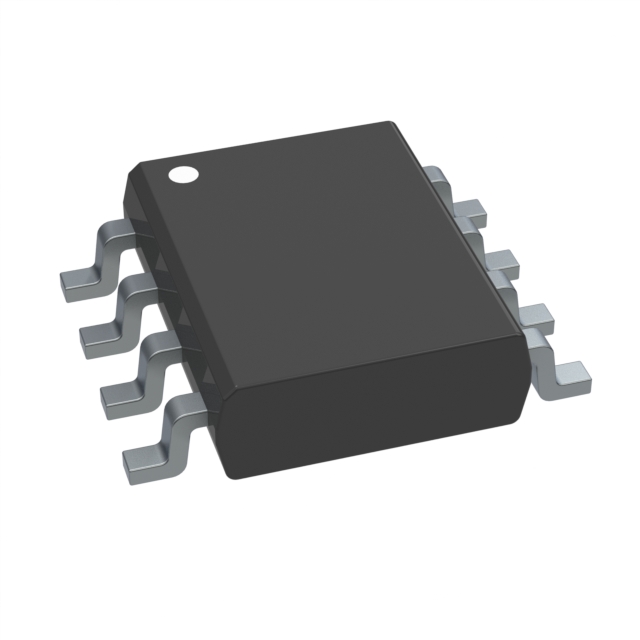

Image shown is a representation only
Manufacturer
Manufacturer No
IL610-1ETR7
Package
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DGTL ISO 1KV 1CH CAN 8-TSSOP
Detailed Description
CAN, RS232, RS422, RS485, SPI Digital Isolator 1000Vrms 1 Channel 100Mbps 15kV/µs CMTI 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Datasheet
Mfr
NVE Corp/Sensor Products
Type
CAN, RS232, RS422, RS485, SPI
Series
IL600
Data Rate
100Mbps
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
GMR (Giant Magnetoresistive)
Channel Type
Unidirectional
Mounting Type
Surface Mount
Isolated Power
No
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Voltage - Supply
3V ~ 5.5V
Number of Channels
1
Base Product Number
IL610
Voltage - Isolation
1000Vrms
Operating Temperature
-40°C ~ 85°C
Inputs - Side 1/Side 2
1/0
Rise / Fall Time (Typ)
2ns, 2ns
Supplier Device Package
8-MSOP
Pulse Width Distortion (Max)
10ns (Min)
Propagation Delay tpLH / tpHL (Max)
15ns, 15ns
Common Mode Transient Immunity (Min)
15kV/µs
| Attribute | Value |
|---|---|
| Mfr | NVE Corp/Sensor Products |
| Type | CAN, RS232, RS422, RS485, SPI |
| Series | IL600 |
| Data Rate | 100Mbps |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | GMR (Giant Magnetoresistive) |
| Channel Type | Unidirectional |
| Mounting Type | Surface Mount |
| Isolated Power | No |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Channels | 1 |
| Base Product Number | IL610 |
| Voltage - Isolation | 1000Vrms |
| Operating Temperature | -40°C ~ 85°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Supplier Device Package | 8-MSOP |
| Pulse Width Distortion (Max) | 10ns (Min) |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
