Step1: Product
NVE Corp/Sensor Products ALT025-10E-TR7

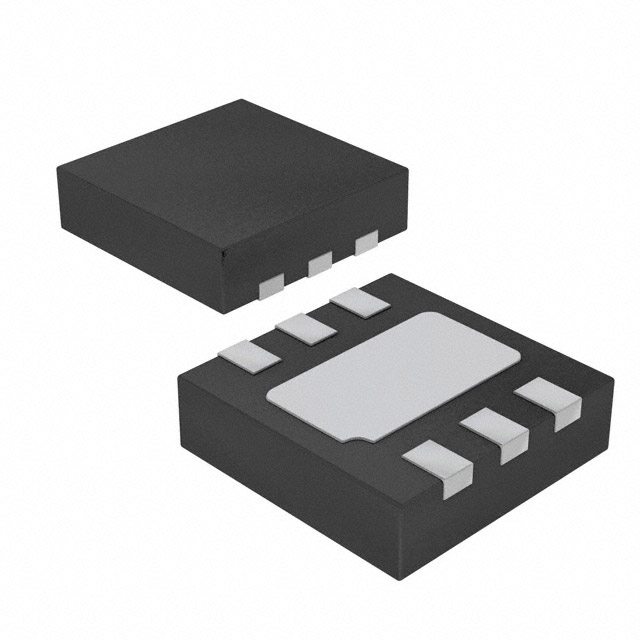

Image shown is a representation only
Manufacturer
Manufacturer No
ALT025-10E-TR7
Package
6-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SEN MR WHEATSTONE BRIDGE 6-TDFN
Detailed Description
Magnetoresistive Sensor X, Y Axis 6-TDFN (2.5x2.5)
DataSheet
Axis
X, Y
Bandwidth
350kHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Resolution
24 b
Technology
Magnetoresistive
Output Type
Wheatstone Bridge
Part Status
Active
Manufacturer
NVE Corp/Sensor Products
Mounting Type
Surface Mount
Sensing Range
±10mT
Package / Case
6-WDFN Exposed Pad
Voltage - Supply
10V
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
6-TDFN (2.5x2.5)
| Attribute | Value |
|---|---|
| Axis | X, Y |
| Bandwidth | 350kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Resolution | 24 b |
| Technology | Magnetoresistive |
| Output Type | Wheatstone Bridge |
| Part Status | Active |
| Manufacturer | NVE Corp/Sensor Products |
| Mounting Type | Surface Mount |
| Sensing Range | ±10mT |
| Package / Case | 6-WDFN Exposed Pad |
| Voltage - Supply | 10V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 6-TDFN (2.5x2.5) |
