Step1: Product
NovuSem NC1M120C75HTNG

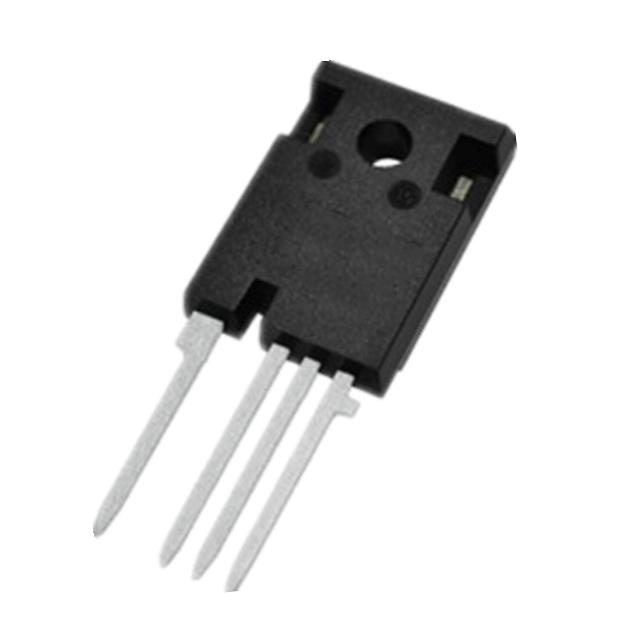

Image shown is a representation only
Manufacturer
Manufacturer No
NC1M120C75HTNG
Package
TO-247-4
Packaging
Tube
Description
SiC MOSFET N 1200V 75mohm 47A 4
Detailed Description
N-Channel 1200 V 47A (Tc) 288W (Ta) Through Hole TO-247-4L
Datasheet
Mfr
NovuSem
Series
NC1M
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+20V, -5V
Technology
SiCFET (Silicon Carbide)
Mounting Type
Through Hole
Package / Case
TO-247-4
Vgs(th) (Max) @ Id
2.8V @ 5mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
75mOhm @ 20A, 20V
Power Dissipation (Max)
288W (Ta)
Supplier Device Package
TO-247-4L
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
1450 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
47A (Tc)
| Attribute | Value |
|---|---|
| Mfr | NovuSem |
| Series | NC1M |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +20V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Vgs(th) (Max) @ Id | 2.8V @ 5mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 20A, 20V |
| Power Dissipation (Max) | 288W (Ta) |
| Supplier Device Package | TO-247-4L |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1450 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
