Step1: Product

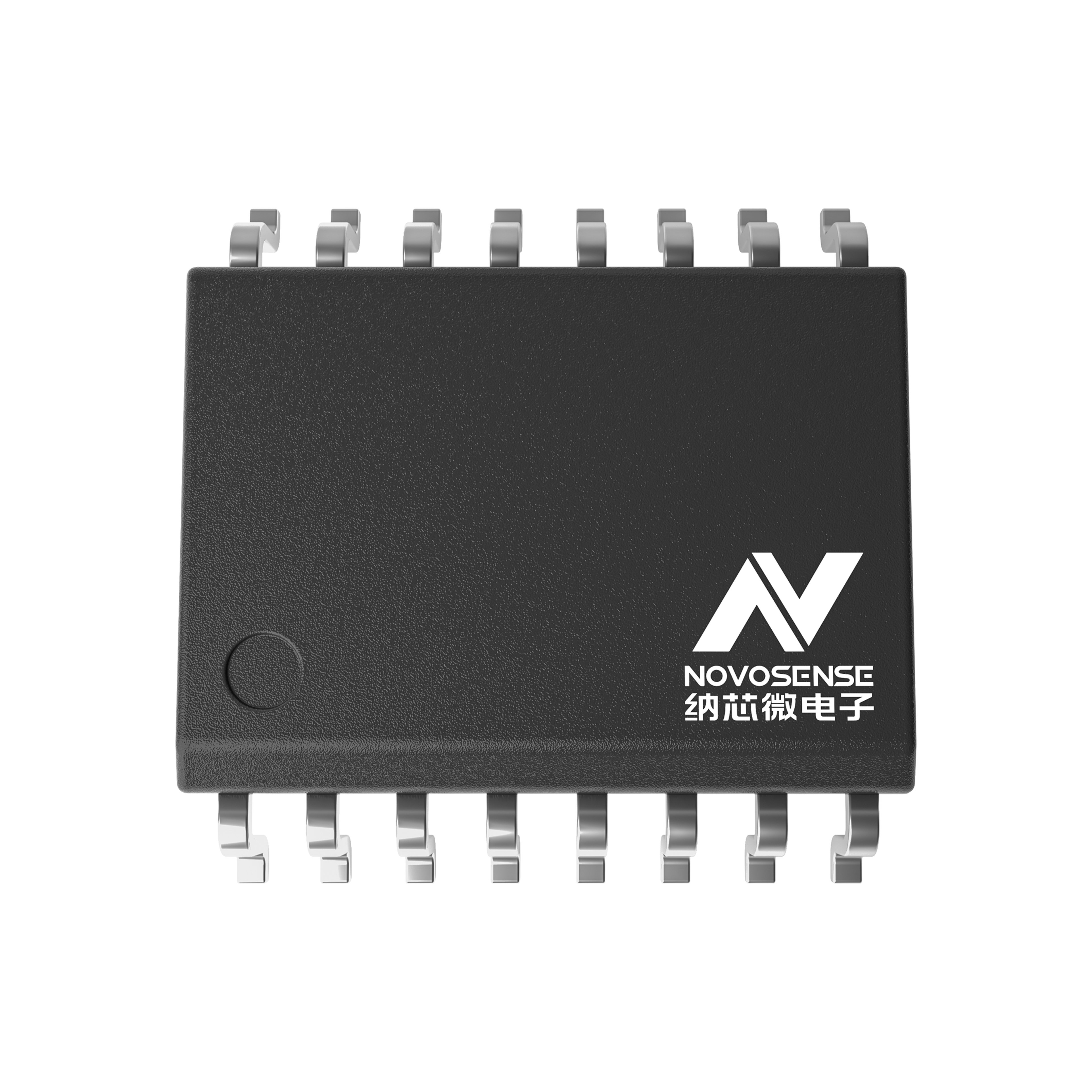

NOVOSENSE NSM2015-50B5F-DSWR
Image shown is a representation only
Manufacturer
Manufacturer No
NSM2015-50B5F-DSWR
Package
16-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
CURRENT SENSOR HE 50A 16-SOIC
Detailed Description
Current Sensor ±50A 1 Channel Hall Effect Bidirectional 16-SOIC (0.295", 7.50mm Width)
DataSheet
Mfr
NOVOSENSE
Output
Fixed, Voltage
Series
NSM2015
Accuracy
±2.5%
Frequency
DC ~ 320kHz
Linearity
±0.2%
Packaging
Tape & Reel (TR)
Part Status
Active
Sensitivity
40mV/A
Sensor Type
Hall Effect
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Surface Mount
Qualification
AEC-Q100
Response Time
1.5µs
Package / Case
16-SOIC (0.295", 7.50mm Width)
Voltage - Supply
4.5V ~ 5.5V
Current - Sensing
±50A
Number of Channels
1
Operating Temperature
-40°C ~ 125°C
Current - Supply (Max)
15mA
Supplier Device Package
16-SOIC
| Attribute | Value |
|---|---|
| Mfr | NOVOSENSE |
| Output | Fixed, Voltage |
| Series | NSM2015 |
| Accuracy | ±2.5% |
| Frequency | DC ~ 320kHz |
| Linearity | ±0.2% |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Sensitivity | 40mV/A |
| Sensor Type | Hall Effect |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Response Time | 1.5µs |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Sensing | ±50A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply (Max) | 15mA |
| Supplier Device Package | 16-SOIC |
