Step1: Product

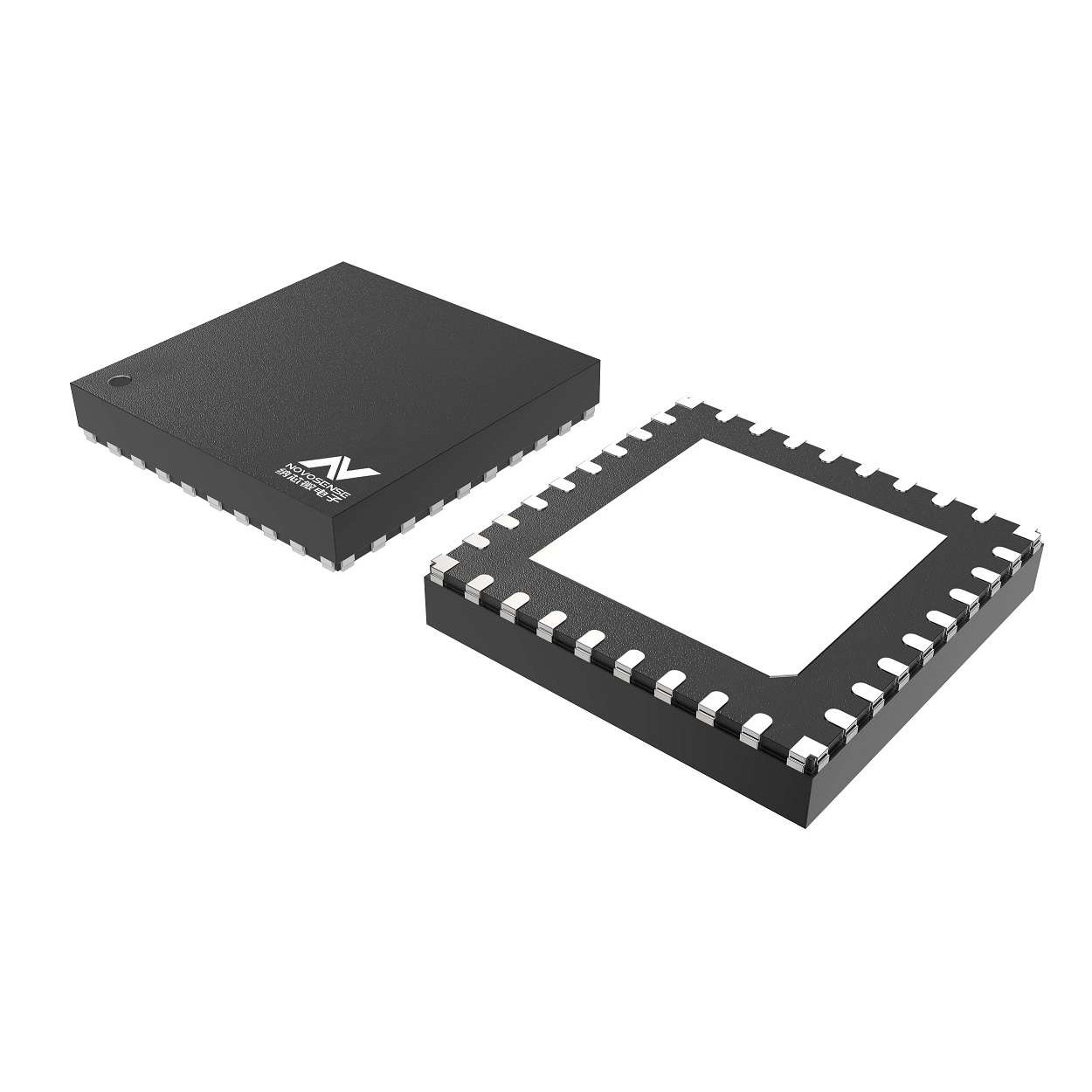

NOVOSENSE NSD8381-Q1QAIR
Image shown is a representation only
Manufacturer
Manufacturer No
NSD8381-Q1QAIR
Package
40-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
40V STEPPER MOTOR DRIVER
Detailed Description
Bipolar Motor Driver Bi-CMOS, DMOS PWM, SPI, Step/Direction 40-VQFN (6x6)
Datasheet
Grade
Automotive
Function
Driver - Fully Integrated, Control and Power Stage
Interface
PWM, SPI, Step/Direction
Packaging
Tape & Reel (TR)
Technology
Bi-CMOS, DMOS
Applications
DC Motor Driver, PWM Motor Driver, Stepper Motor Driver
Manufacturer
NOVOSENSE
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
40-VFQFN Exposed Pad
Voltage - Load
4.5V ~ 40V
Step Resolution
1 ~ 1/32
Current - Output
1.35A
Voltage - Supply
4.5V ~ 40V
Motor Type - AC, DC
Brushless DC (BLDC), Brushed DC, PMSM, Servo, Stepper
Motor Type - Stepper
Bipolar
Output Configuration
Full H-Bridge, (4) Quad
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
40-VQFN (6x6)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM, SPI, Step/Direction |
| Packaging | Tape & Reel (TR) |
| Technology | Bi-CMOS, DMOS |
| Applications | DC Motor Driver, PWM Motor Driver, Stepper Motor Driver |
| Manufacturer | NOVOSENSE |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 40-VFQFN Exposed Pad |
| Voltage - Load | 4.5V ~ 40V |
| Step Resolution | 1 ~ 1/32 |
| Current - Output | 1.35A |
| Voltage - Supply | 4.5V ~ 40V |
| Motor Type - AC, DC | Brushless DC (BLDC), Brushed DC, PMSM, Servo, Stepper |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Full H-Bridge, (4) Quad |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 40-VQFN (6x6) |
