Step1: Product

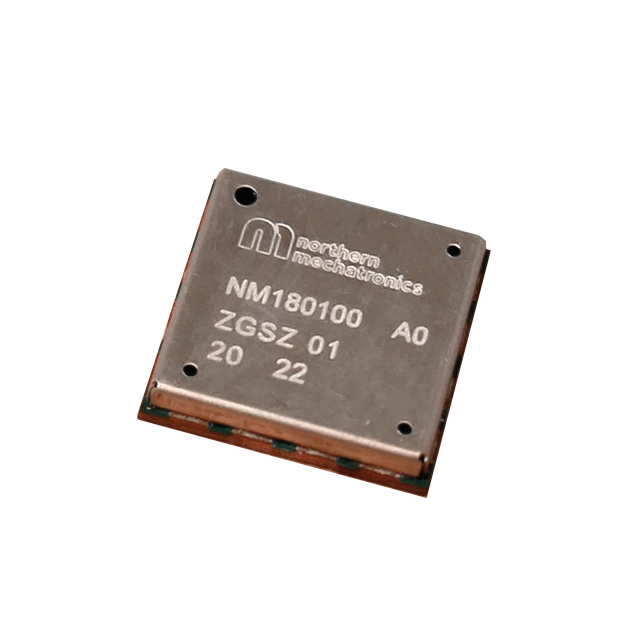

Northern Mechatronics Inc. NM180100
Image shown is a representation only
Manufacturer
Manufacturer No
NM180100
Package
81-BLGA Module
Packaging
Strip
Description
RF TXRX MOD BT ISM<1GHZSMD
Detailed Description
Bluetooth, General ISM < 1GHz Bluetooth v5.0, LoRa Transceiver Module 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.402GHz ~ 2.48GHz Antenna Not Included Surface Mount
DataSheet
Mfr
Northern Mechatronics Inc.
Protocol
Bluetooth v5.0, LoRa
Frequency
863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.402GHz ~ 2.48GHz
Packaging
Strip
Memory Size
1MB Flash, 384kB RAM
Part Status
Active
Sensitivity
-147.5dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
81-BLGA Module
Power - Output
22dBm
Voltage - Supply
2.8V ~ 3.6V
Serial Interfaces
ADC, GPIO, I2C, I2S, SPI, PDM, UART
RF Family/Standard
Bluetooth, General ISM < 1GHz
Utilized IC / Part
SX1262
Current - Receiving
3mA ~ 8.8mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
3mA ~ 143mA
| Attribute | Value |
|---|---|
| Mfr | Northern Mechatronics Inc. |
| Protocol | Bluetooth v5.0, LoRa |
| Frequency | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.402GHz ~ 2.48GHz |
| Packaging | Strip |
| Memory Size | 1MB Flash, 384kB RAM |
| Part Status | Active |
| Sensitivity | -147.5dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | 81-BLGA Module |
| Power - Output | 22dBm |
| Voltage - Supply | 2.8V ~ 3.6V |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SPI, PDM, UART |
| RF Family/Standard | Bluetooth, General ISM < 1GHz |
| Utilized IC / Part | SX1262 |
| Current - Receiving | 3mA ~ 8.8mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 3mA ~ 143mA |
