Step1: Product

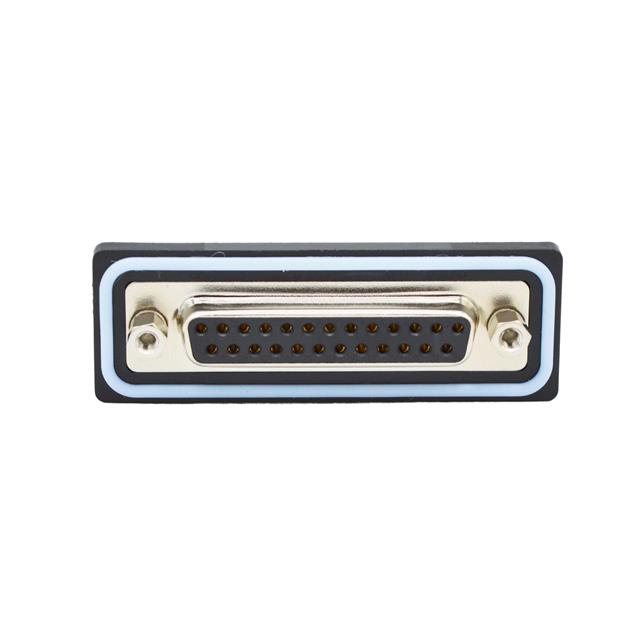

NorComp Inc. SDF-V25-213L052
Image shown is a representation only
Manufacturer
Manufacturer No
SDF-V25-213L052
Packaging
Tray
Description
CONN D-SUB RCPT 25P PNL MNT SLDR
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
NorComp Inc.
Color
Black
Series
NANOOK
Features
Board Lock
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Brass
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
SDF-V25
Dielectric Material
Polybutylene Terephthalate (PBT)
Number of Positions
25
Current Rating (Amps)
5A
Operating Temperature
-25°C ~ 85°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Color | Black |
| Series | NANOOK |
| Features | Board Lock |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | SDF-V25 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 25 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
