Step1: Product

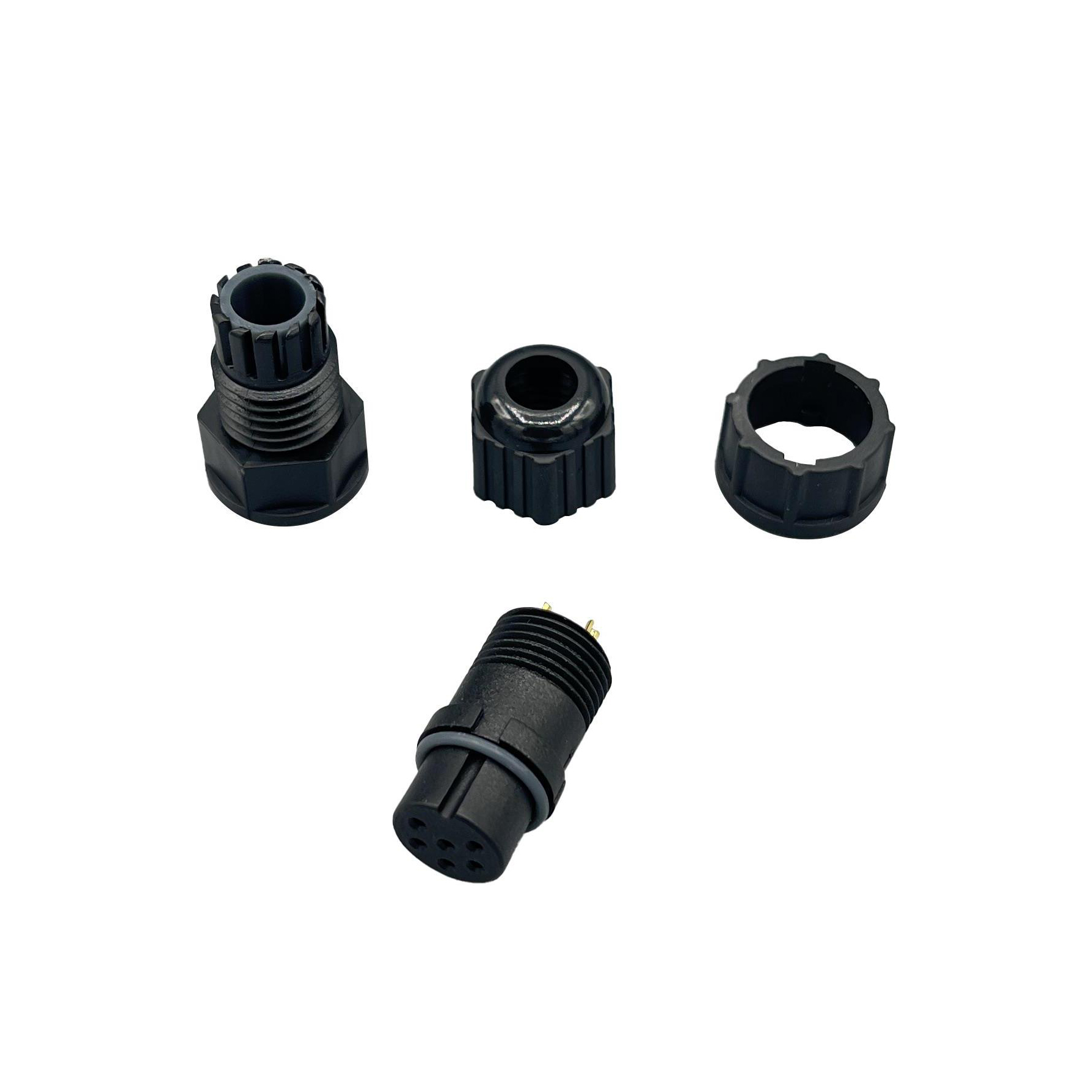

NorComp Inc. 868-006-203KIT
Image shown is a representation only
Manufacturer
Manufacturer No
868-006-203KIT
Packaging
Tray
Description
FEMALE B SIZE BAYONET CIRCULAR C
Detailed Description
6 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
NorComp Inc.
Color
Black
Series
868
Features
Backshell, Coupling Nut
Packaging
Tray
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Cable Opening
0.177" ~ 0.256" (4.50mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
250V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
6
Shell Size - Insert
B
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Color | Black |
| Series | 868 |
| Features | Backshell, Coupling Nut |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Cable Opening | 0.177" ~ 0.256" (4.50mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | 250V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 6 |
| Shell Size - Insert | B |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
