Step1: Product

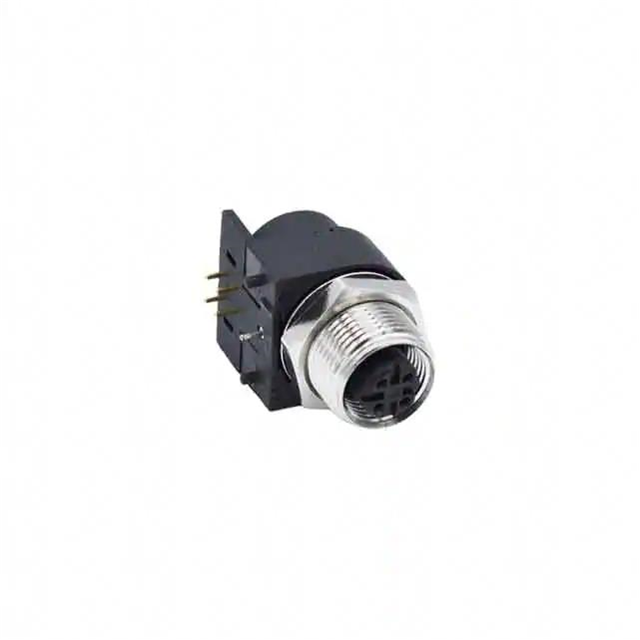

NorComp Inc. 861-D04-21SR004
Image shown is a representation only
Manufacturer
Manufacturer No
861-D04-21SR004
Packaging
Tray
Description
M12 4P D-CODE FEMALE RA PCB SS S
Detailed Description
4 Position Circular Connector Plug, Female Sockets Solder
DataSheet
Mfr
NorComp Inc.
Color
Black, Silver
Series
VULCON™ STEEL
Features
Board Guide
Packaging
Tray
Shielding
Shielded
Orientation
D
Part Status
Active
Termination
Solder
Applications
Industrial, Medical
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Stainless Steel
Voltage Rating
250V
Insert Material
Polybutylene Terephthalate (PBT)
Contact Material
Brass
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
4
Shell Size - Insert
M12-4
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Color | Black, Silver |
| Series | VULCON™ STEEL |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | D |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial, Medical |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Stainless Steel |
| Voltage Rating | 250V |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Brass |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
