Step1: Product

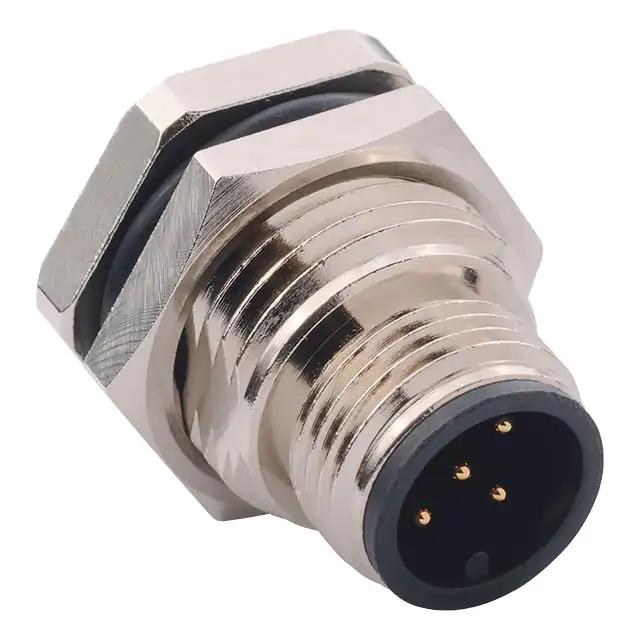

NorComp Inc. 860-005-11SR004
Image shown is a representation only
Manufacturer
Manufacturer No
860-005-11SR004
Packaging
Tray
Description
M12 5P A-CODE MALE VERT PANEL SS
Detailed Description
5 Position Circular Connector Receptacle, Male Pins Solder
DataSheet
Mfr
NorComp Inc.
Color
Silver
Series
VULCON™ STEEL
Packaging
Tray
Shielding
Shielded
Orientation
A
Part Status
Active
Termination
Solder
Applications
Industrial, Medical
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Stainless Steel
Voltage Rating
60V
Insert Material
Polybutylene Terephthalate (PBT)
Contact Material
Brass
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Color | Silver |
| Series | VULCON™ STEEL |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | A |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial, Medical |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Stainless Steel |
| Voltage Rating | 60V |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Brass |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
