Step1: Product

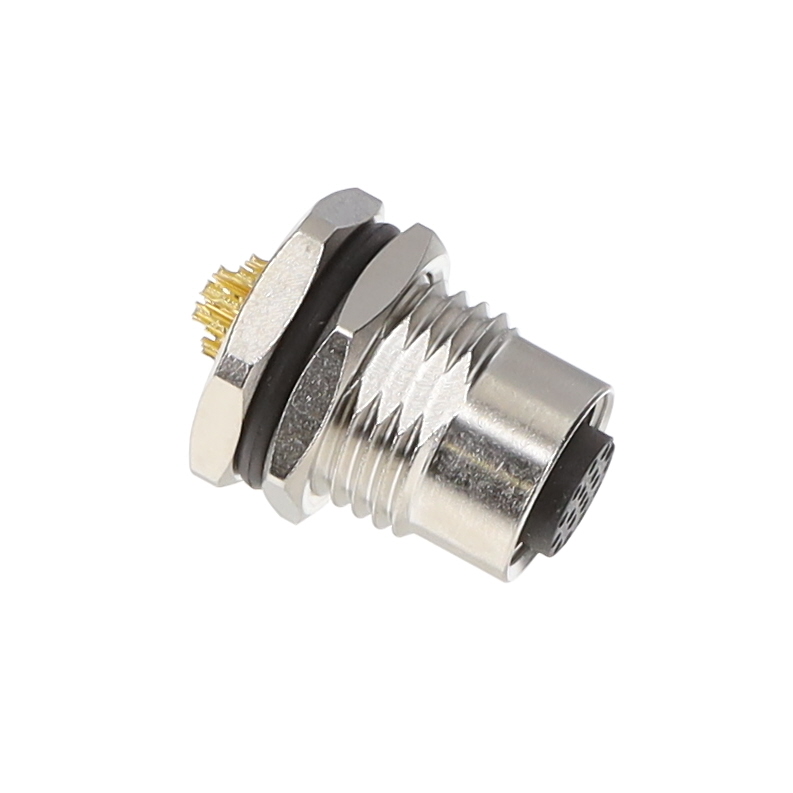

NorComp Inc. 859-017-203R004
Image shown is a representation only
Manufacturer
Manufacturer No
859-017-203R004
Packaging
Tray
Description
IP67 FEMALE M12 REAR PANEL MOUNT
Detailed Description
17 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
NorComp Inc.
Series
VULCON™
Packaging
Tray
Shielding
Shielded
Orientation
A
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
30V
Insert Material
Polybutylene Terephthalate (PBT)
Contact Material
Brass
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
17
Shell Size - Insert
M12-17
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Series | VULCON™ |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | A |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 30V |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Brass |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 17 |
| Shell Size - Insert | M12-17 |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
