Step1: Product

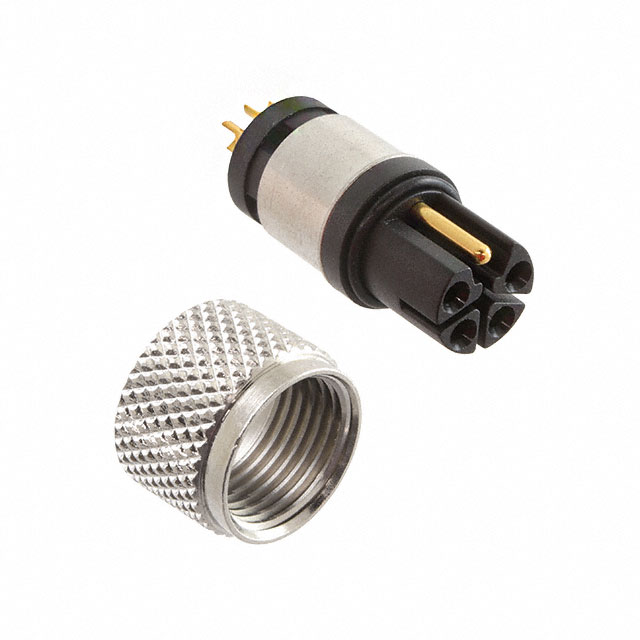

NorComp Inc. 858-LP5-203RLS4
Image shown is a representation only
Manufacturer
Manufacturer No
858-LP5-203RLS4
Packaging
Tray
Description
CONN PLUG FMALE 5P GOLD SLDR CUP
Detailed Description
5 (4 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
NorComp Inc.
Color
Silver
Series
VULCON™
Features
Coupling Nut
Packaging
Tray
Shielding
Shielded
Orientation
L
Part Status
Active
Termination
Solder Cup
Applications
Industrial
Shell Finish
Tin
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
63V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
858-LP5
Number of Positions
5 (4 + PE)
Shell Size - Insert
M12-5
Current Rating (Amps)
16A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | NorComp Inc. |
| Color | Silver |
| Series | VULCON™ |
| Features | Coupling Nut |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | L |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial |
| Shell Finish | Tin |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 63V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 858-LP5 |
| Number of Positions | 5 (4 + PE) |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 16A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
